Gigabyte

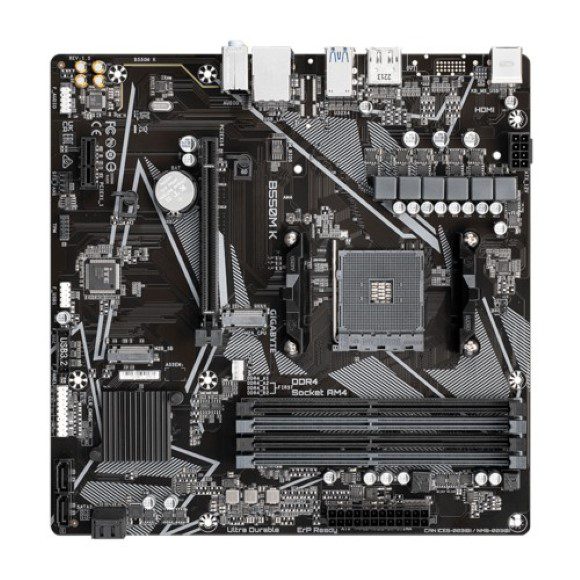

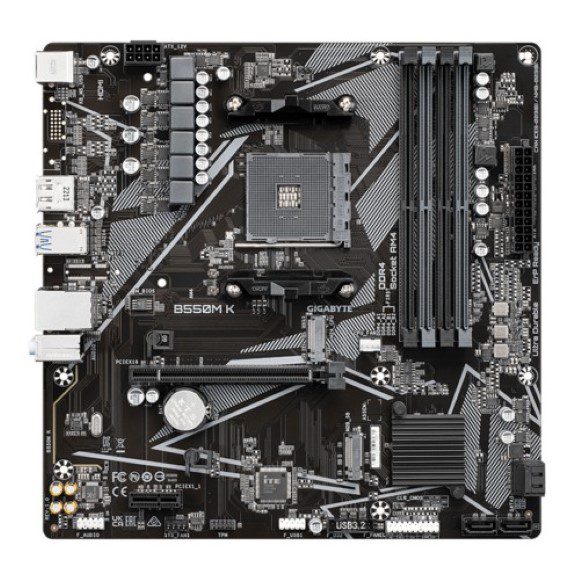

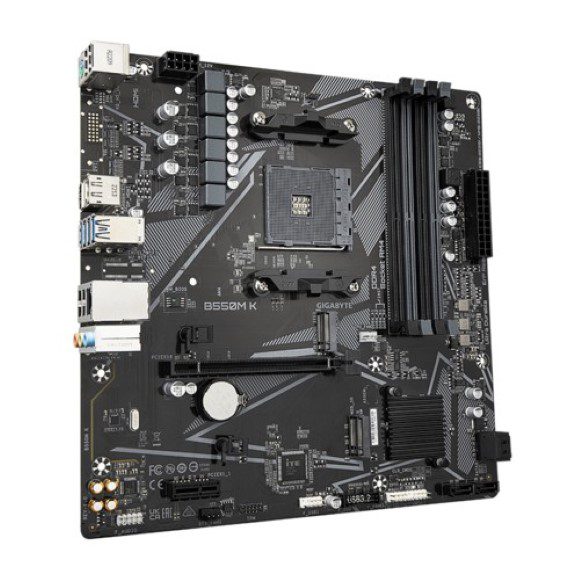

Gigabyte B550M K AM4 M-ATX Ultra Durable Motherboard
In stock
Rs 26,500
Key Highlights
AMD B550 Ultra Durable Motherboard with Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, GbE LAN, Smart Fan 5 with FAN STOP
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- GbE LAN with Bandwidth Management
- Rear DisplayPort and HDMI for Multi-display Support
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Anti-Sulfur Resistors Design
- Brand
- Gigabyte
- Category
- Motherboard / Chipset
- SKU
- B550M K AMD
- Warranty
- 1 Year Warranty
- Delivery to all major cities across Pakistan (2-5 business days)
- Or pick it up at Techno City Mall, Karachi
Gigabyte B550M K AMD A520 AMD B550 Ultra Durable Motherboard Price in Pakistan
CPU | 1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors |
| (Please refer "CPU Support List" for more information.) | |
Chipset | 1. AMD B550 |
Memory | 1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| 2. Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
| 3. Dual channel memory architecture | |
| 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* | |
| * ECC memory (ECC mode) support varies by CPU | |
| 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| 6. Support for Extreme Memory Profile (XMP) memory modules | |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | |
Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: |
| 1. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz | |
| * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. | |
| 2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| * Support for HDMI 2.1 version, HDCP 2.3, and HDR. | |
| Maximum shared memory of 16 GB | |
Audio | 1. Realtek® Audio CODEC |
| 2. High Definition Audio | |
| 3. 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
LAN | 1. Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
Expansion Slots | 1 x PCI Express x16 slot, integrated in the CPU: |
| 1. AMD Ryzen™ 5000 Series*/3000 Series Processors support PCIe 4.0 x16 mode | |
| * Actual support may vary by AMD CPU's specification. | |
| 2. AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode | |
| 1 x PCI Express x1 slot, integrated in the Chipset: | |
| 1. Supporting PCIe 3.0 x1 mode | |
Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: |
| 1. AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs | |
| 2. AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs | |
| 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs: | |
| 1. Supporting PCIe 3.0 x2 SSDs | |
| 4 x SATA 6Gb/s connectors, integrated in the Chipset: | |
| 1. Support for RAID 0, RAID 1, and RAID 10 | |
USB | CPU: |
| 1. 4 x USB 3.2 Gen 1 ports on the back panel | |
| Chipset: | |
| 1. 2 x USB 3.2 Gen 1 ports available through the internal USB header | |
| 2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector | |
| 3. 1 x CPU fan header | |
| 4. 1 x system fan header | |
| 5. 2 x M.2 Socket 3 connectors | |
| 6. 4 x SATA 6Gb/s connectors | |
| 7. 1 x front panel header | |
| 8. 1 x front panel audio header | |
| 9. 1 x USB 3.2 Gen 1 header | |
| 10. 1 x USB 2.0/1.1 header | |
| 11. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| 12. 1 x Clear CMOS jumper | |

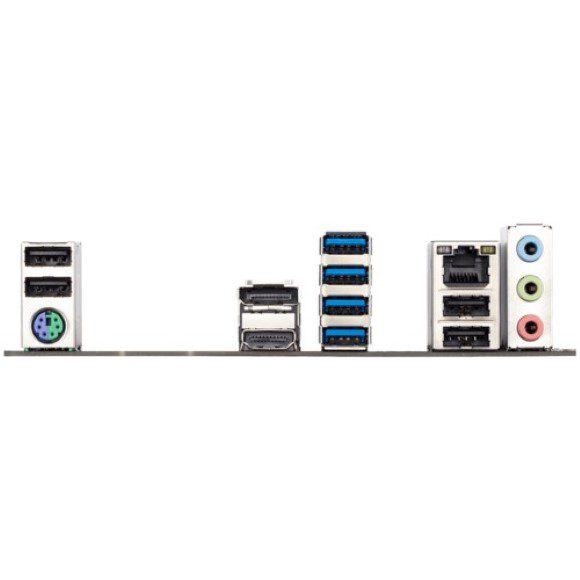

Back Panel Connectors | 1. 1 x PS/2 keyboard/mouse port |
| 2. 1 x DisplayPort | |
| 3. 1 x HDMI port | |
| 4. 4 x USB 3.2 Gen 1 ports | |
| 5. 4 x USB 2.0/1.1 ports | |
| 6. 1 x RJ-45 port | |
| 7. 3 x audio jacks | |
I/O Controller | 1. iTE® I/O Controller Chip |
H/W Monitoring | 1. Voltage detection |
| 2. Temperature detection | |
| 3. Fan speed detection | |
| 4. Fan fail warning | |
| 5. Fan speed control | |
| * Whether the fan speed control function is supported will depend on the cooler you install. | |
BIOS | 1. 1 x 128 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS | |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Unique Features | 1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| @BIOS | |
| EasyTune | |
| Smart Backup | |
| System Information Viewer | |
| 2. Support for Q-Flash | |
Bundled Software | 1. Norton® Internet Security (OEM version) |
| 2. LAN bandwidth management software | |
Operating System | 1. Support for Windows 11 64-bit |
| 2. Support for Windows 10 64-bit | |
Form Factor | 1. Micro ATX Form Factor; 24.4cm x 24.4cm |
Remark | 1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. |
| 2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. |
| Product Name | Gigabyte B550M K AM4 M-ATX Ultra Durable Motherboard |
| Brand | Gigabyte |
| Category | Motherboard / Chipset |
| SKU | B550M K AMD |
| Motherboard Platform | AMD Motherboard |
| RAM Type | DDR4 |
| Warranty | 1 Year Warranty |
| Payment Methods | Cash on Delivery (COD), Direct Bank Transfer, EasyPaisa, JazzCash |
