Gigabyte

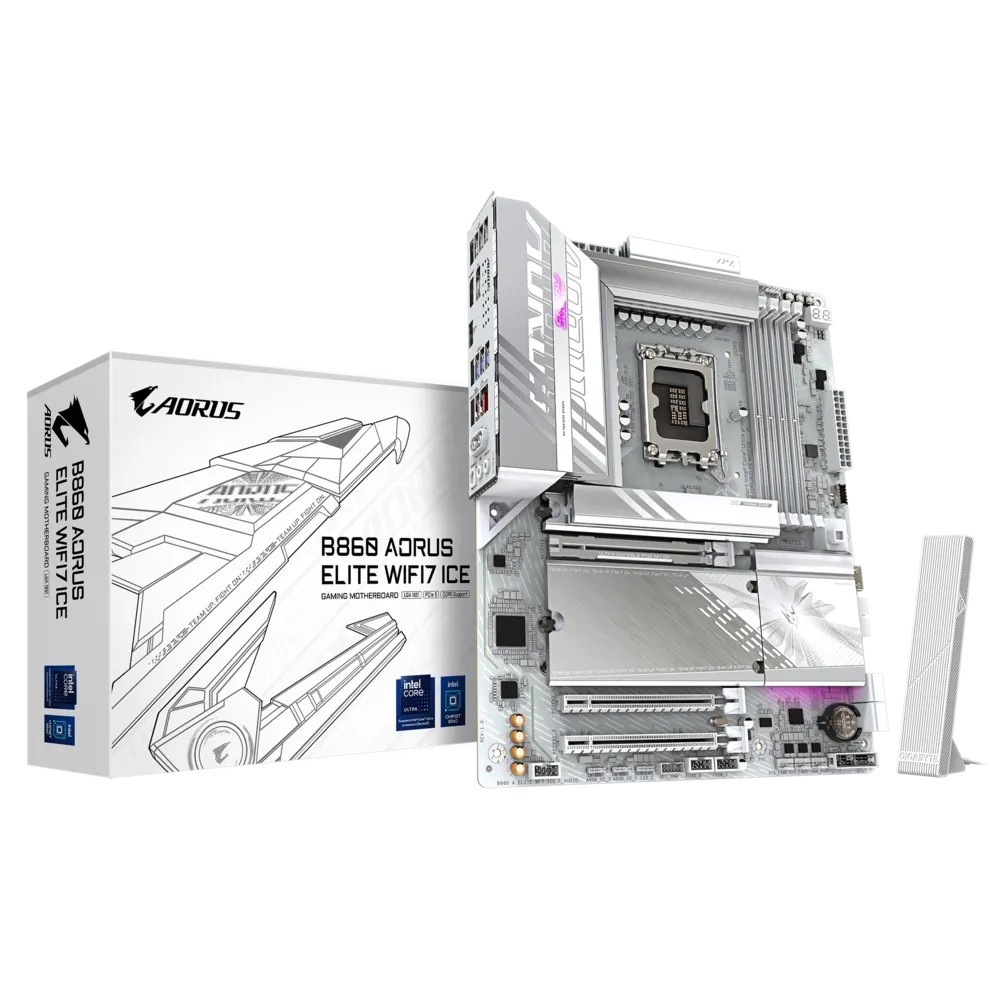

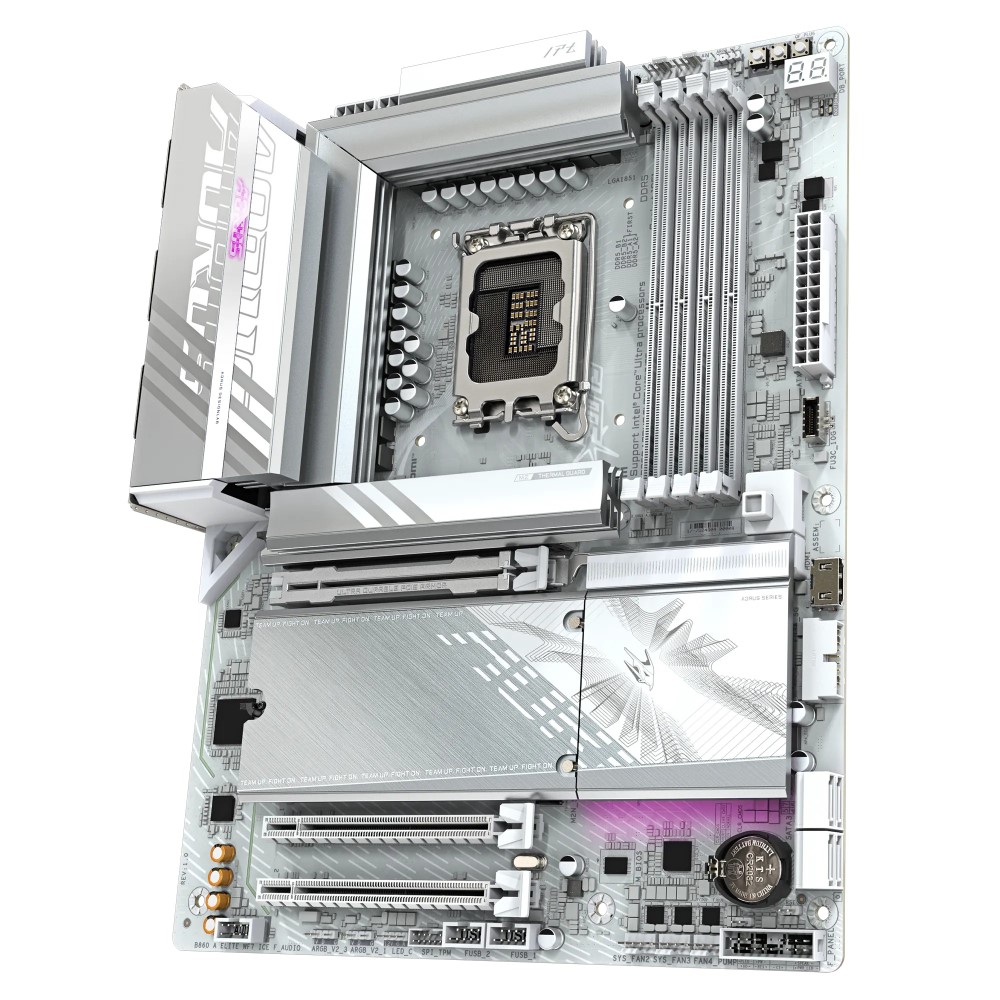

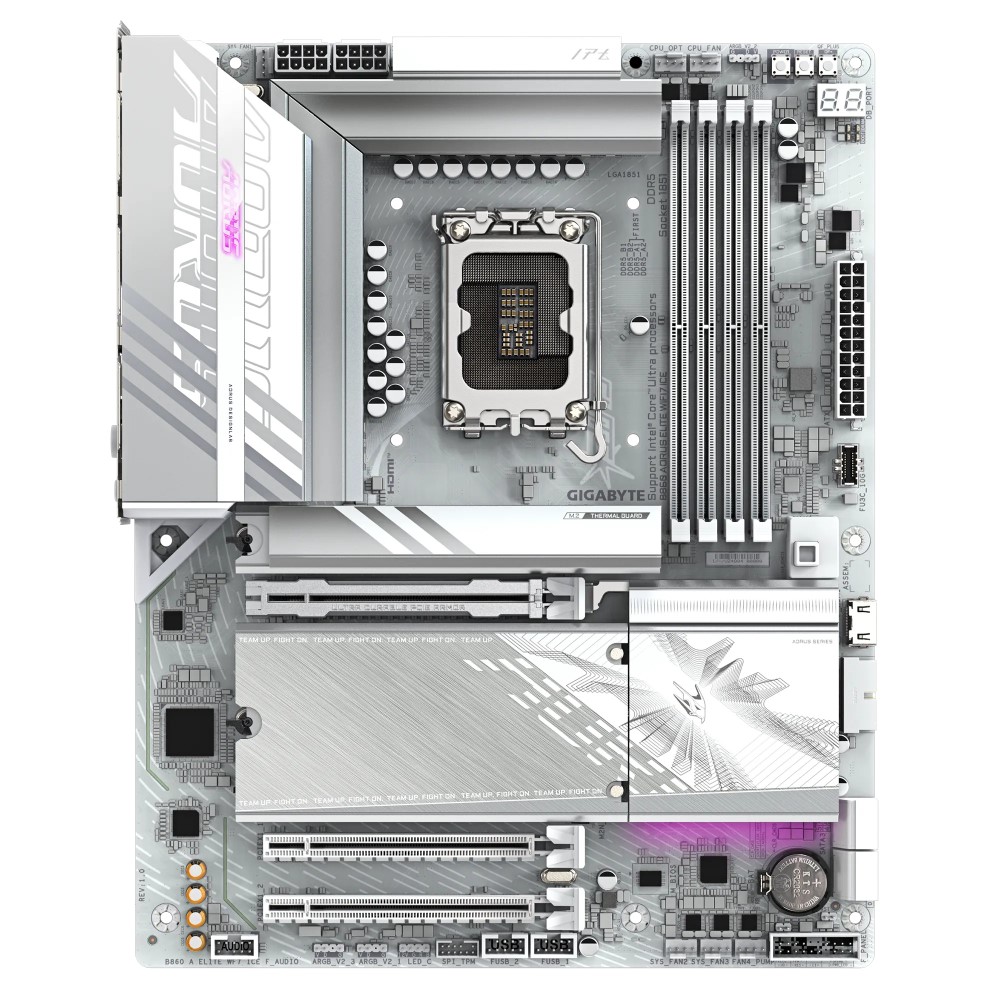

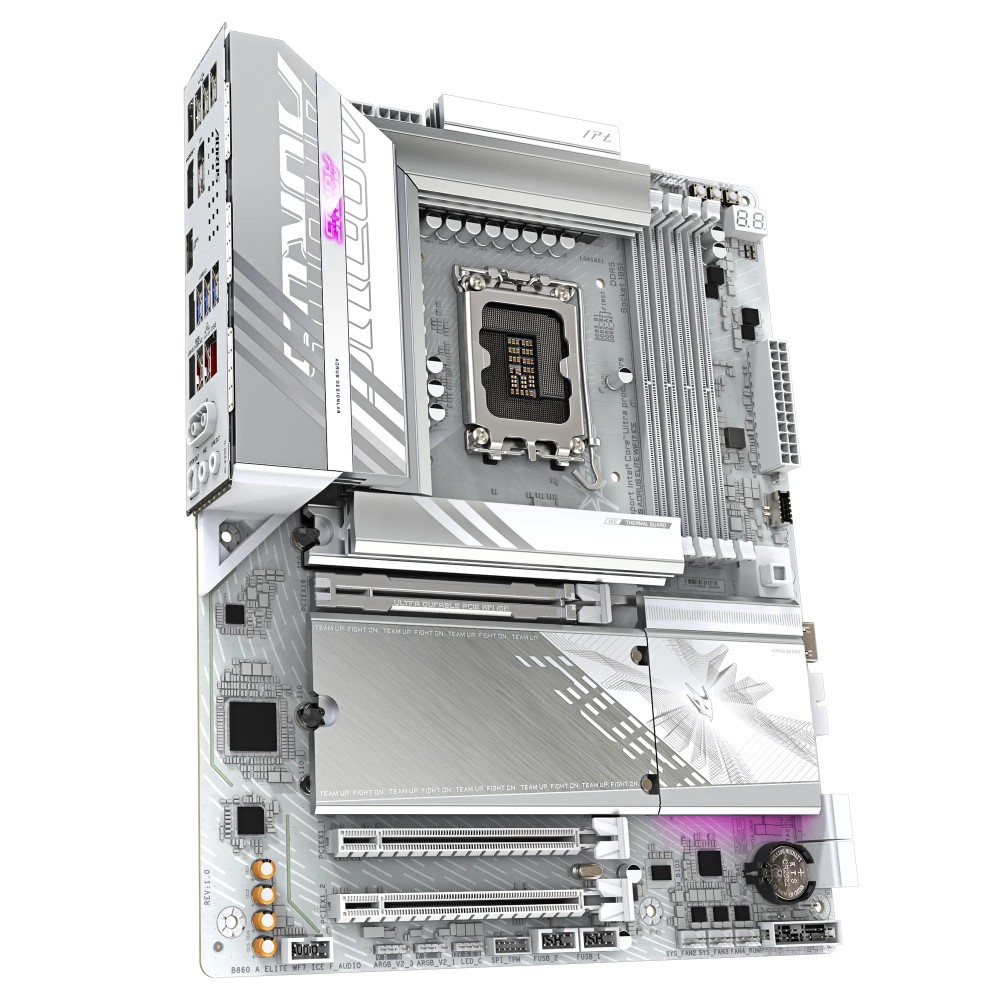

Gigabyte B860 AORUS Elite WIFI7 ICE Motherboard - Intel Core Ultra Series CPUs 14+1+2+1 Phases VRM up to 9200MHz DDR5 1x PCIe 5.0 + 2xPCIe 4.0 M.2 2.5GbE LAN WiFi 7 USB 4
In stock
Rs 79,000
Key Highlights
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 14+1+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.

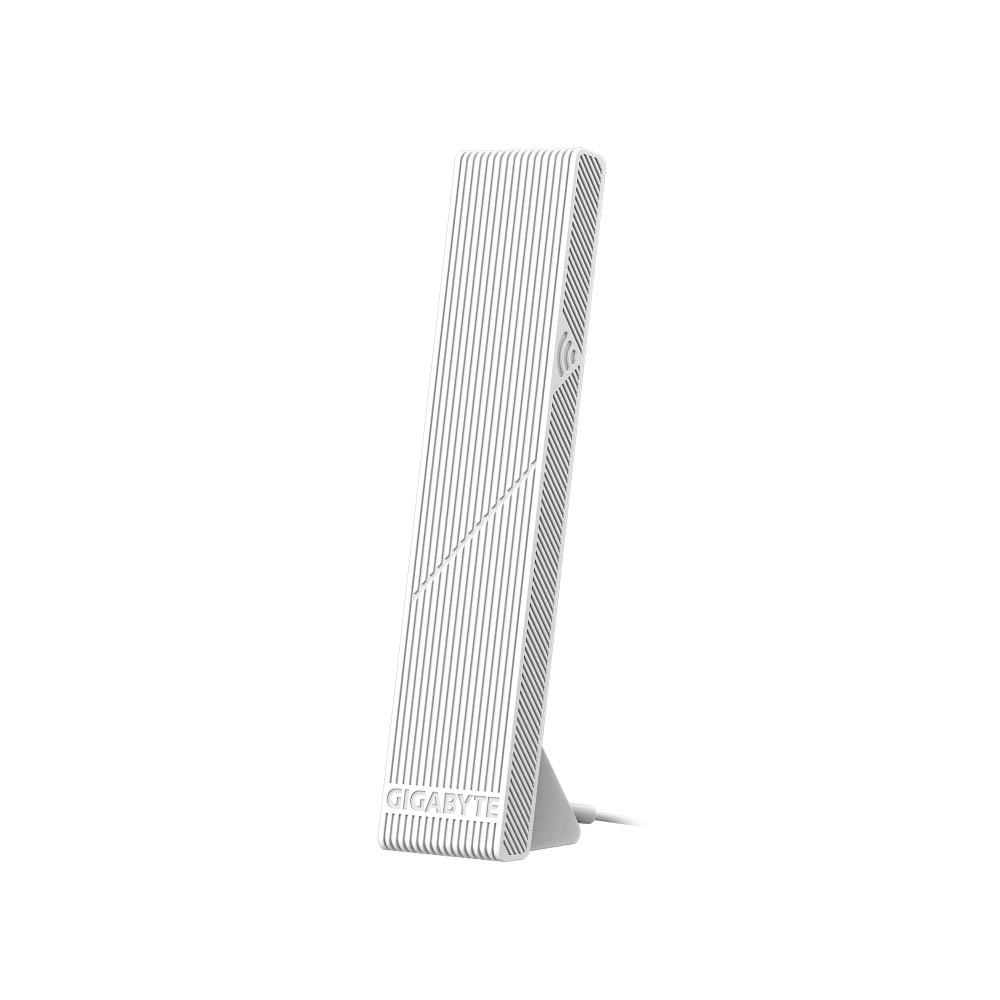

- Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : USB4 Type-C with DP-Alt, HDMI, DisplayPort
- Brand
- Gigabyte
- Category
- Motherboard / Chipset
- SKU
- B860 AORUS Elite WIFI7 ICE
- Warranty
- 1 Year Warranty
- Delivery to all major cities across Pakistan (2-5 business days)
- Or pick it up at Techno City Mall, Karachi
Gigabyte B860 AORUS Elite WIFI7 ICE Motherboard - Intel Core Ultra Series CPUs 14+1+2+1 Phases VRM up to 9200MHz DDR5 1x PCIe 5.0 + 2xPCIe 4.0 M.2 2.5GbE LAN WiFi 7 USB 4 Price in Pakistan
| CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors (Check GIGABYTE’s website for CPU support list). |
| L3 cache varies with CPU. | |
| Chipset | Intel® B860 Express Chipset |
| Memory | Support for DDR5 9200(O.C)/8800(O.C)/8600(O.C)/8400(O.C)/8266(O.C)/8200(O.C) /8000(O.C)/7950(O.C)/7900(O.C)/7800(O.C)/7600(O.C)/7400(O.C)/7200(O.C) /7000(O.C)/6800(O.C)/6600(O.C)/6400/5600 MT/s memory modules. |
| 4 x DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM). | |
| Dual Channel Architecture. | |
| Supports ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode) and non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16. | |
| Supports Intel XMP memory profiles. | |
| Onboard Graphics | Integrated Intel® HD Graphics: |
| • 1 x USB4® Type-C® (DP 2.1, 3840x2160@144Hz) | |
| • 1 x DisplayPort (DP 2.1, 3840x2160@144Hz) | |
| • 1 x HDMI (HDMI 2.1, 4096x2160@60Hz, HDCP 2.3) | |
| • 1 x Front HDMI (HDMI 1.4, 1920x1080@30Hz) | |
| Supports up to Quad-Display. | |
| Audio | Realtek® Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel support | |
| S/PDIF Out support | |
| Configurable via audio software. | |
| LAN | Realtek® 2.5GbE LAN (2.5/1/0.1 Gbps). |
| Wireless Communication | PCB rev.1.0: Realtek® Wi-Fi 7 RTL8922AE |
| PCB rev.1.1: MediaTek Wi-Fi 7 MT7925 | |
| • Wi-Fi 7 (802.11a/b/g/n/ac/ax/be) – 2.4/5/6GHz | |
| • Bluetooth® 5.4 | |
| • Supports 160MHz channel width | |
| Wi-Fi 7 requires Windows 11 SV3. No driver for Windows 10. | |
| Expansion Slots | CPU: 1 x PCIe 5.0 x16 slot (supports GPU or NVMe SSD). |
| Chipset: 2 x PCIe 4.0 x1 slots. | |
| Storage Interface | CPU: 1 x M.2 (PCIe 5.0 x4/x2, 25110/22110/2580/2280) (M2A_CPU). |
| Chipset: 2 x M.2 (PCIe 4.0 x4/x2, 22110/2280) (M2Q_SB, M2N_SB). | |
| 4 x SATA 6Gb/s connectors. | |
| Supports RAID 0/1/5/10. | |
| USB Ports | CPU: 1 x USB4® Type-C® (back panel). |
| Chipset: 1 x USB 3.2 Gen 2 Type-C® (internal), 2 x USB 3.2 Gen 2 Type-A (rear, red), 2 x USB 3.2 Gen 1 (internal). | |
| Chipset + Hub: 4 x USB 3.2 Gen 1 (rear). | |
| Chipset + 2 USB 2.0 Hubs: 8 x USB 2.0/1.1 (4 rear, 4 internal). | |
| Internal I/O Connectors | 1 x 24-pin ATX main power |
| 2 x 8-pin ATX 12V power | |
| 1 x CPU fan header | |
| 1 x CPU fan/water pump header | |
| 3 x system fan headers | |
| 1 x system fan/water pump header | |
| 3 x ARGB Gen2 headers | |
| 1 x RGB header | |
| 3 x M.2 slots | |
| 4 x SATA ports | |
| Front panel / Audio / USB headers (Type-C, USB 3.2 Gen1, USB 2.0) | |
| TPM header | |
| Front HDMI | |
| Power/Reset/Q-Flash Plus/CMOS jumper | |

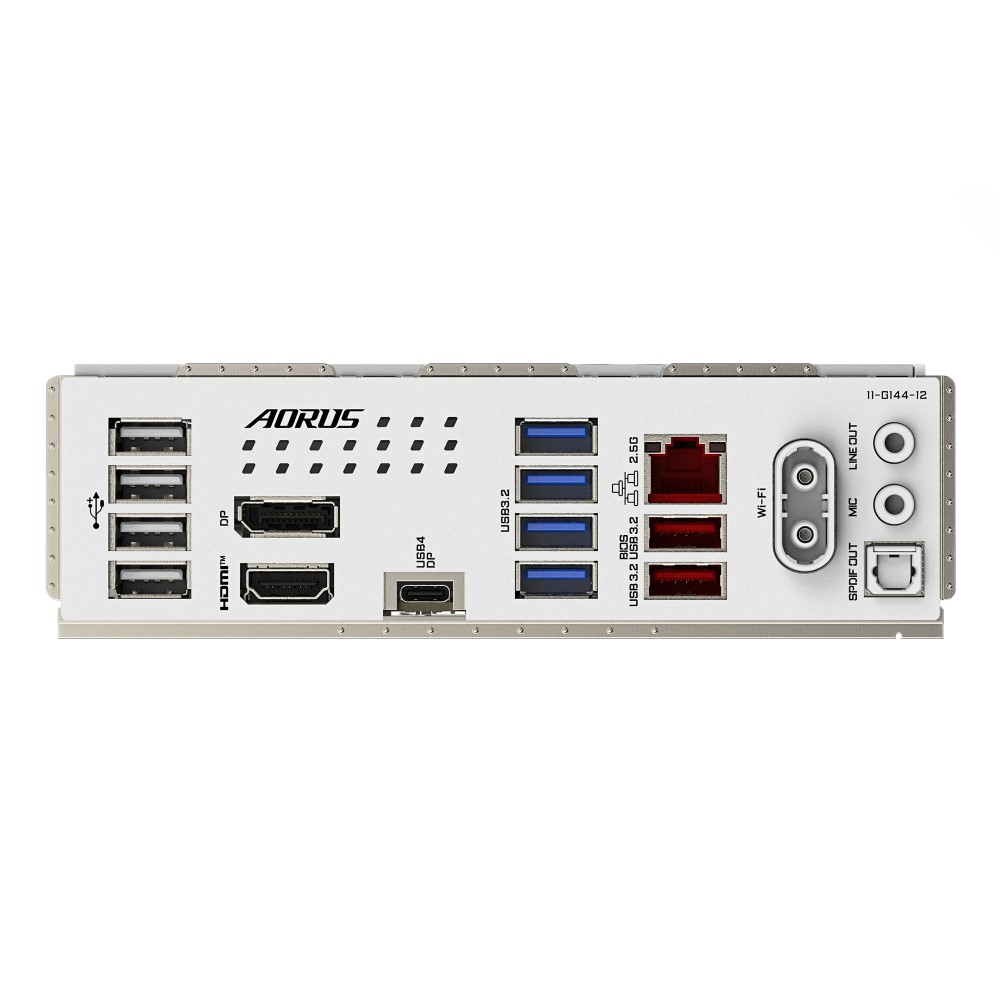

| Back Panel I/O | 1 x USB4® Type-C® (DP) |
| 2 x USB 3.2 Gen 2 Type-A (red) | |
| 4 x USB 3.2 Gen 1 | |
| 4 x USB 2.0/1.1 | |
| 1 x DisplayPort | |
| 1 x HDMI | |
| 2 x Antenna connectors | |
| 1 x RJ-45 LAN | |
| 1 x Optical S/PDIF Out | |
| 2 x Audio jacks | |
| I/O Controller | iTE® I/O Controller Chip |
| Hardware Monitoring | Voltage, temperature, fan speed, water flow detection, fan fail warning, and fan/pump speed control. |
| BIOS | 1 x 256 Mbit flash |
| AMI UEFI BIOS | |
| Supports PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. | |
| Unique Features | Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup. |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software. |
| Operating System | Support for Windows 11 64-bit only. |
| Form Factor | ATX Form Factor – 30.5 cm x 24.4 cm |
| Product Name | Gigabyte B860 AORUS Elite WIFI7 ICE Motherboard - Intel Core Ultra Series CPUs 14+1+2+1 Phases VRM up to 9200MHz DDR5 1x PCIe 5.0 + 2xPCIe 4.0 M.2 2.5GbE LAN WiFi 7 USB 4 |
| Brand | Gigabyte |
| Category | Motherboard / Chipset |
| SKU | B860 AORUS Elite WIFI7 ICE |
| Motherboard Platform | Intel Motherboard |
| RAM Type | DDR5 |
| Warranty | 1 Year Warranty |
| Payment Methods | Cash on Delivery (COD), Direct Bank Transfer, EasyPaisa, JazzCash |
