Gigabyte

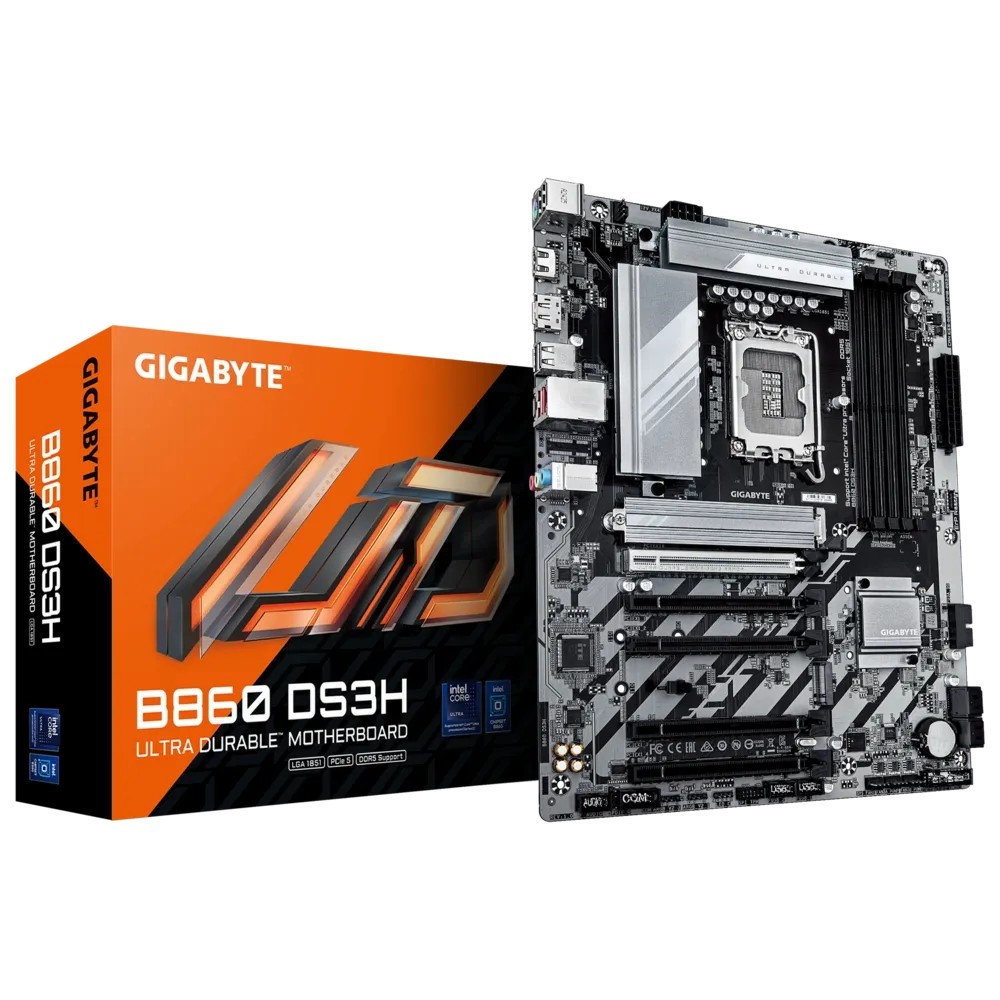

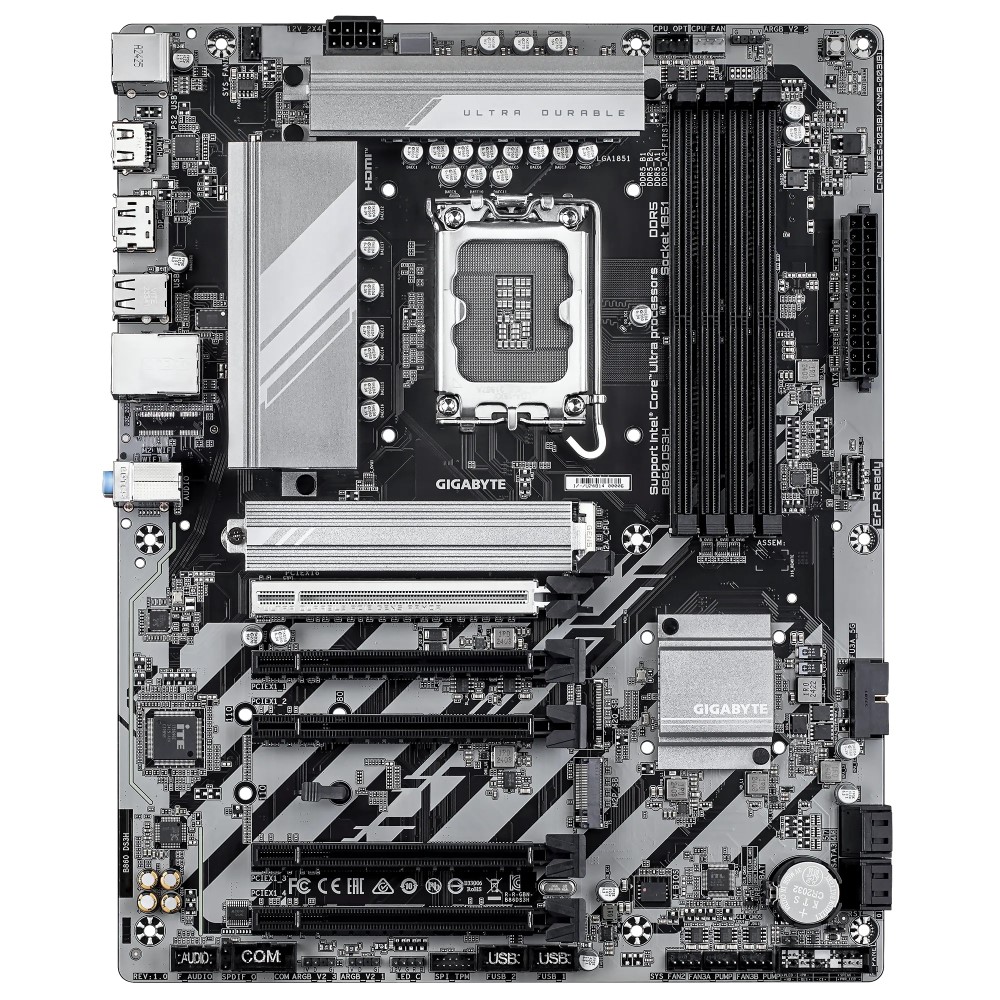

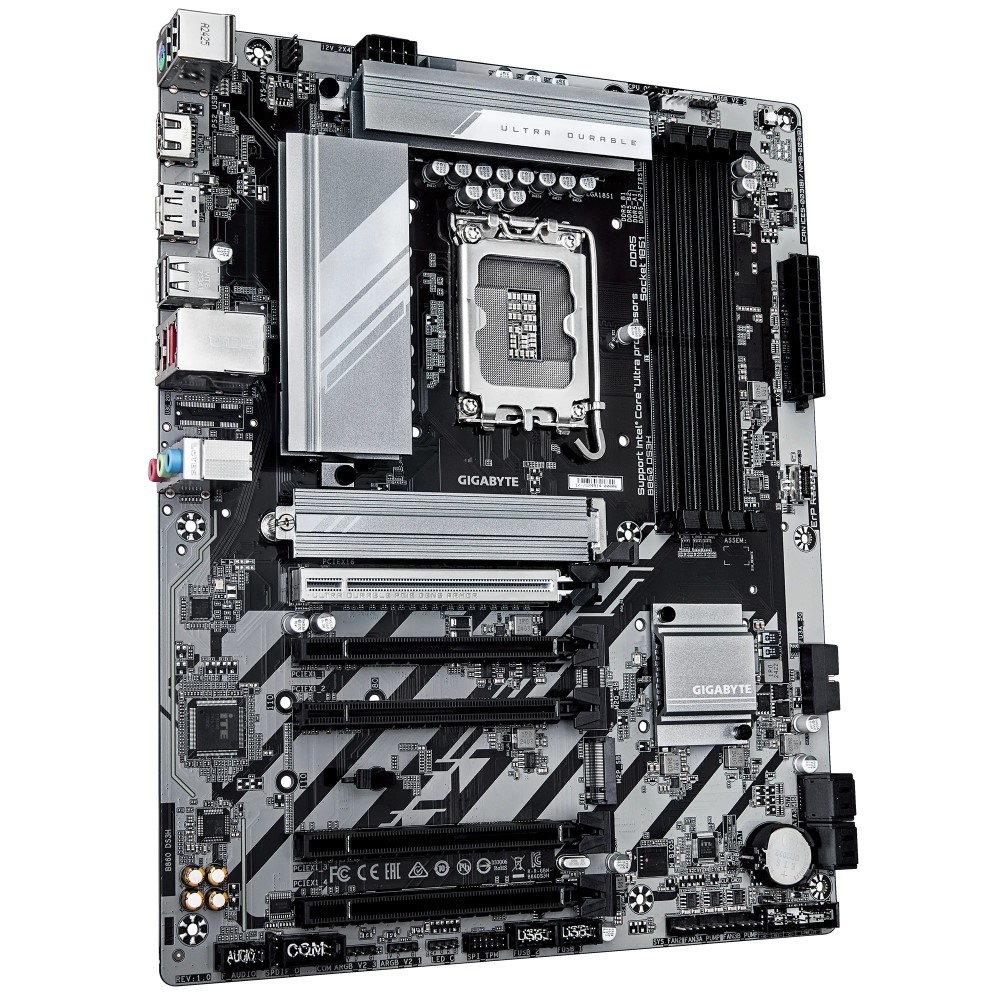

Gigabyte B860 DS3H DDR5 Intel Micro ATX Motherboard
In stock
Rs 49,999
Key Highlights
- Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid 8+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- EZ-Latch : PCIe x16 Slot with Quick Release Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
- M.2 Thermal Guard : To Ensure M.2 SSD Performance
- Fast Networking : 2.5GbE LAN
- Extended Connectivity : DisplayPort, HDMI
- Brand
- Gigabyte
- Category
- Motherboard / Chipset
- SKU
- B860 DS3H DDR5
- Warranty
- 1 Year Warranty
- Delivery to all major cities across Pakistan (2-5 business days)
- Or pick it up at Techno City Mall, Karachi
Gigabyte B860 DS3H DDR5 Intel Micro ATX Motherboard Price in Pakistan
| CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| (Refer to GIGABYTE website for latest CPU support list) | |
| L3 cache varies with CPU | |
| Chipset | Intel® B860 Express Chipset |
| Memory | Support for DDR5 9066(O.C)/8800(O.C)/8600(O.C)/8400(O.C)/8266(O.C)/8200(O.C)/8000(O.C) /7950(O.C)/7900(O.C)/7800(O.C)/7600(O.C)/7400(O.C)/7200(O.C)/7000(O.C)/6800(O.C)/6600(O.C) /6400/5600 MT/s memory modules |
| 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB per DIMM) | |
| Dual channel memory architecture | |
| Support for ECC/Non-ECC Un-buffered DIMMs | |
| Support for Extreme Memory Profile (XMP) | |
| Onboard Graphics | Integrated Intel® HD Graphics |
| 1 x HDMI 2.1 port (4096x2160@60Hz, HDCP 2.3) | |
| 1 x DisplayPort 2.1 (3840x2160@144Hz) | |
| *Graphics support may vary by CPU | |
| Audio | Realtek® Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel support | |
| S/PDIF Out support | |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | CPU: 1 x PCIe x16 slot (PCIe 5.0 x16) |
| Chipset: 4 x PCIe x16 slots (PCIe 4.0 x1 each) | |
| Storage Interface | CPU: 1 x M.2 (PCIe 5.0 x4/x2, type 25110/22110/2580/2280) |
| Chipset: 1 x M.2 (PCIe 4.0 x4/x2, type 25110/22110/2580/2280) | |
| 4 x SATA 6Gb/s connectors | |
| Supports RAID 0/1/5/10 | |
| USB Ports | Back Panel: |
| 1 x USB Type-C® (USB 3.2 Gen 2x2) | |
| 1 x USB 3.2 Gen 2 Type-A (red) | |
| 4 x USB 2.0/1.1 | |
| Internal Headers: | |
| 1 x USB Type-C® (USB 3.2 Gen 1) | |
| 1 x USB 3.2 Gen 1 header (2 ports) | |
| 2 x USB 2.0/1.1 headers (4 ports) | |
| Internal I/O Connectors | 1 x 24-pin ATX main power |
| 1 x 8-pin ATX 12V | |
| 1 x CPU fan header | |
| 1 x CPU fan/water pump header | |
| 2 x system fan headers | |
| 2 x system fan/water pump headers | |
| 3 x ARGB Gen2 headers | |
| 1 x RGB LED header | |
| 2 x M.2 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x S/PDIF Out header | |
| 1 x USB Type-C® header (USB 3.2 Gen 1) | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x TPM header | |
| 1 x serial port header | |
| 1 x Q-Flash Plus button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |

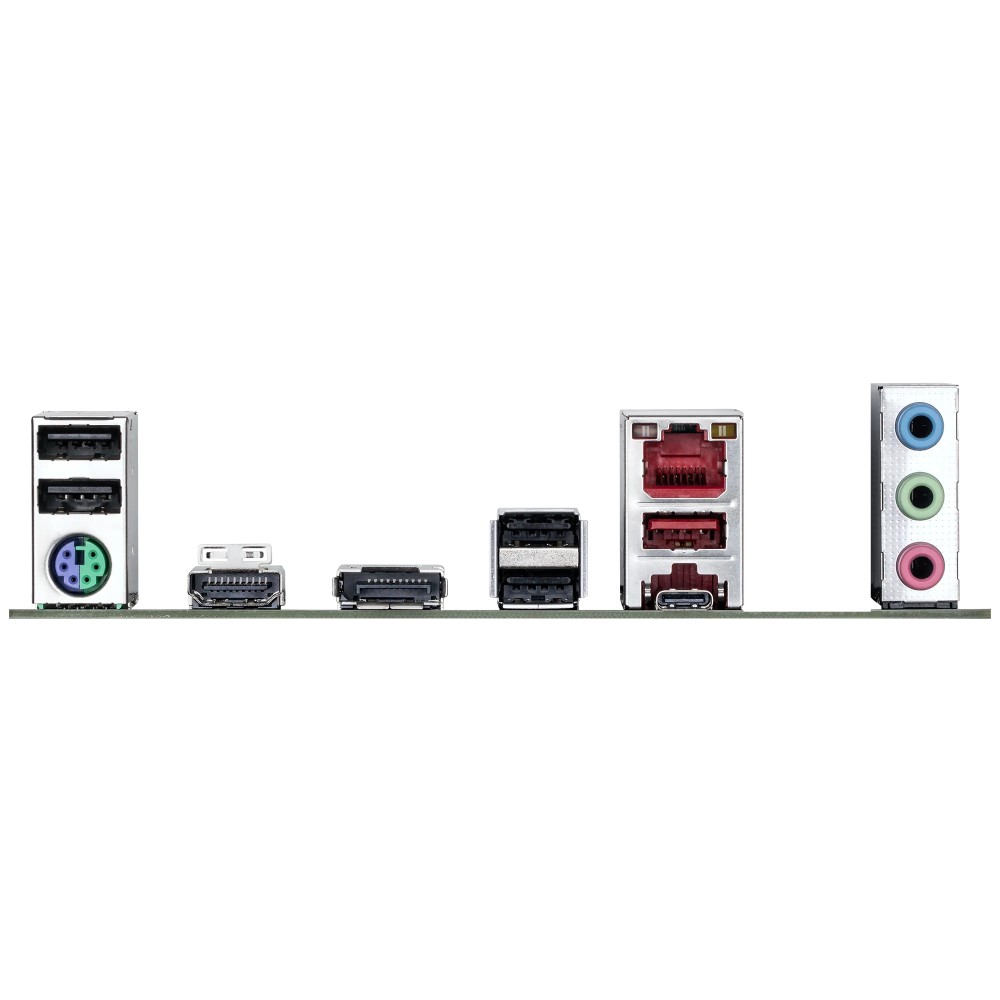

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port |
| 1 x HDMI port | |
| 1 x DisplayPort | |
| 1 x USB Type-C® (USB 3.2 Gen 2x2) | |
| 1 x USB 3.2 Gen 2 Type-A (red) | |
| 4 x USB 2.0/1.1 ports | |
| 1 x RJ-45 LAN port | |
| 2 x antenna connectors | |
| 3 x audio jacks | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, and fan speed detection |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan/pump speed control (depends on device) | |
| BIOS | 1 x 256 Mbit flash |
| AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support for GIGABYTE Control Center (GCC) |
| Support for Q-Flash / Q-Flash Plus / Smart Backup | |
| Bundled Software | Norton® Internet Security (OEM) |
| LAN bandwidth management software | |
| Operating System | Support for Windows 11 64-bit |
| Support for Windows 10 64-bit | |
| *Intel® NPU driver supported only on Windows 11 | |
| Form Factor | ATX Form Factor (30.5cm x 24.4cm) |
| Product Name | Gigabyte B860 DS3H DDR5 Intel Micro ATX Motherboard |
| Brand | Gigabyte |
| Category | Motherboard / Chipset |
| SKU | B860 DS3H DDR5 |
| Motherboard Platform | Intel Motherboard |
| RAM Type | DDR5 |
| Warranty | 1 Year Warranty |
| Payment Methods | Cash on Delivery (COD), Direct Bank Transfer, EasyPaisa, JazzCash |
