Gigabyte

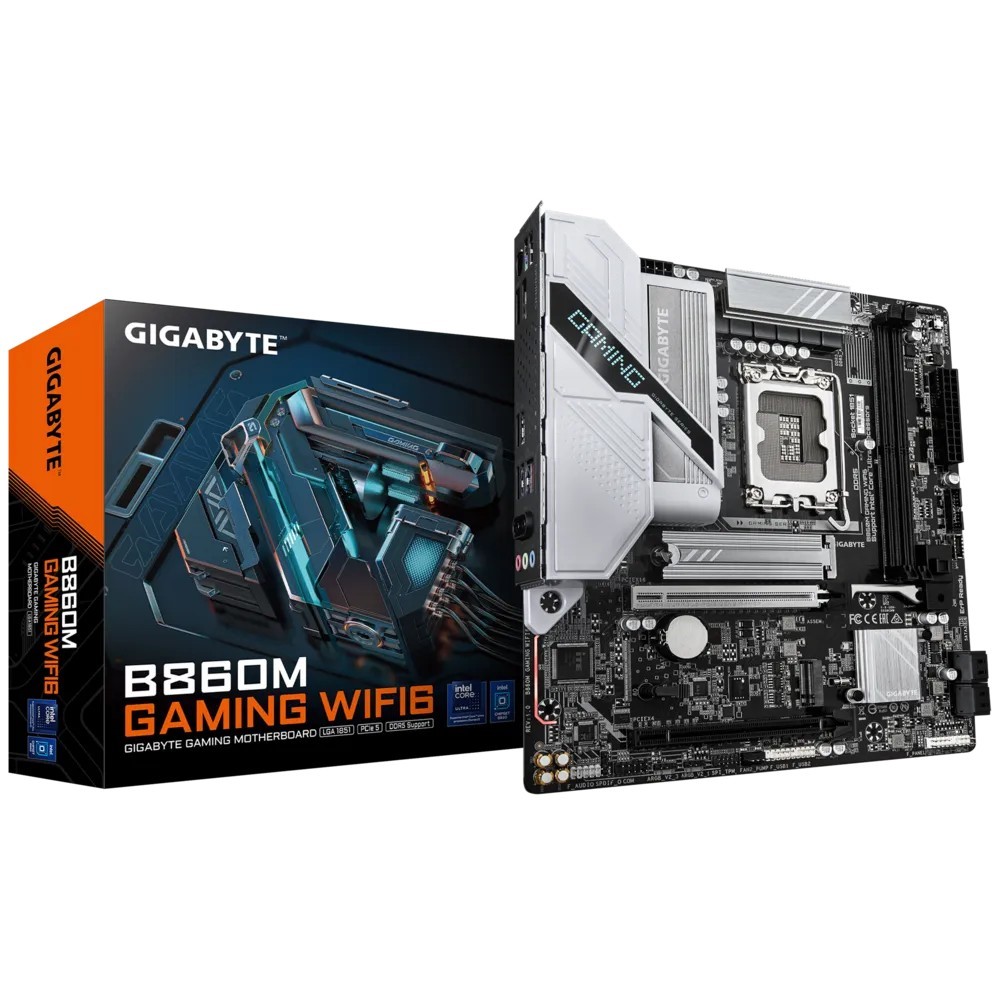

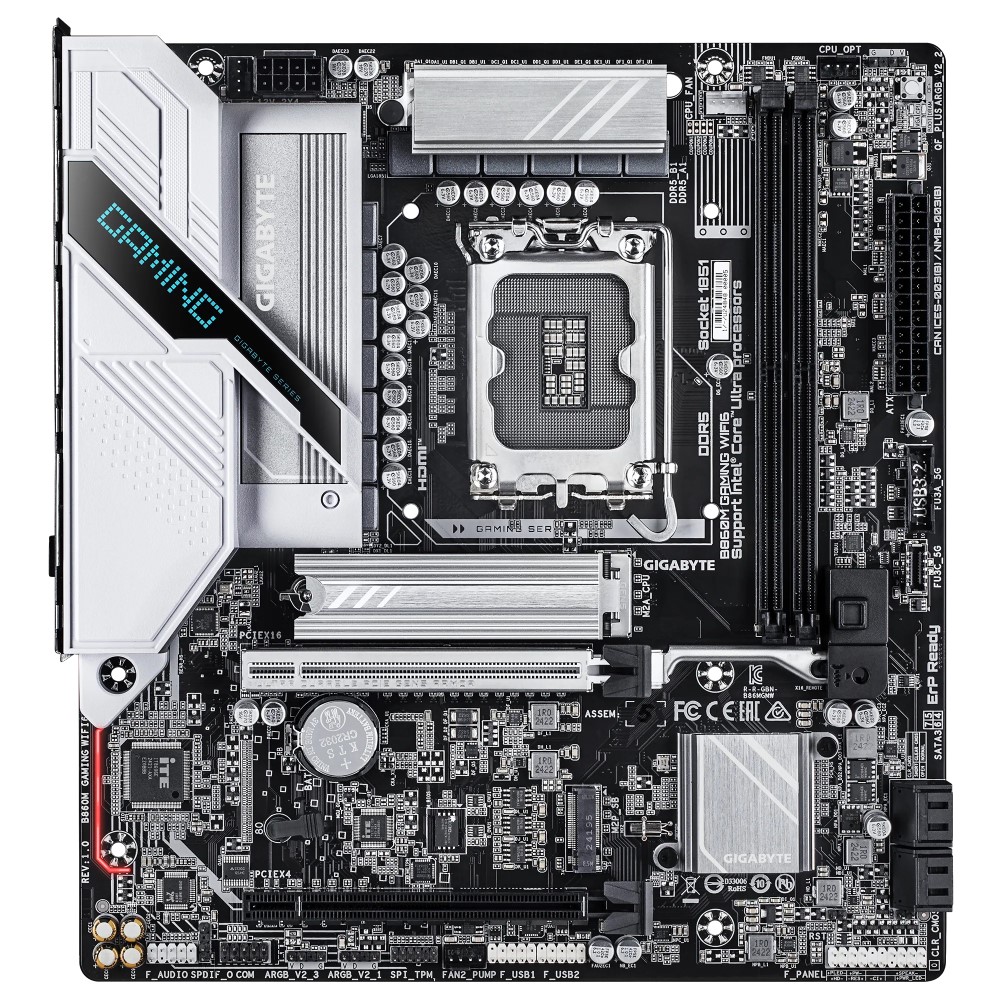

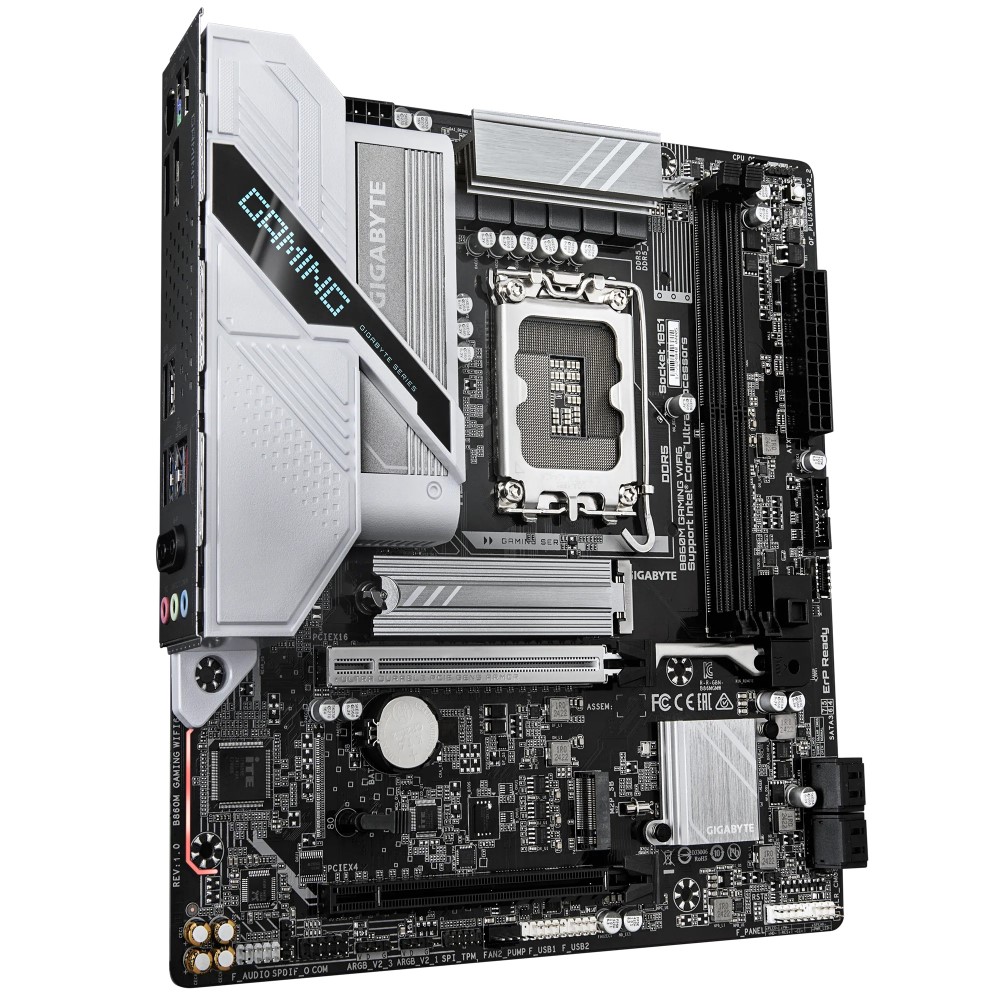

Gigabyte B860M Gaming WiFi6 LGA 1851 M-ATX Motherboard Intel B860 Chipset 2x DIMM DDR5 Slots Up to 128GB Max Memory 1x PCIe 5.0 x16 2x M.2 Slots WiFi 6 & BT 5.3
In stock
Rs 46,999
Key Highlights
- Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid 8+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- PCIe EZ-Latch Plus : PCIe slots with Quick Release & Screwless Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN & Wi-Fi 6 802.11ax
- Extended Connectivity : HDMI, DisplayPort
- Brand
- Gigabyte
- Category
- Motherboard / Chipset
- SKU
- B860M WiFi6 DDR5
- Warranty
- 1 Year Warranty
- Delivery to all major cities across Pakistan (2-5 business days)
- Or pick it up at Techno City Mall, Karachi
Gigabyte B860M Gaming WiFi6 LGA 1851 M-ATX Motherboard Intel B860 Chipset 2x DIMM DDR5 Slots Up to 128GB Max Memory 1x PCIe 5.0 x16 2x M.2 Slots WiFi 6 & BT 5.3 Price in Pakistan
| CPU | LGA1851 socket: Supports Intel® Core™ Ultra Processors |
| (Refer to GIGABYTE website for CPU support list) | |
| L3 cache varies with CPU | |
| Chipset | Intel® B860 Express Chipset |
| Memory | - Supports DDR5 9066(O.C)/8800(O.C)/8600(O.C)/8400(O.C)/8266(O.C)/8200(O.C)/8000(O.C)/7950(O.C)/7900(O.C)/7800(O.C)/7600(O.C)/7400(O.C)/7200(O.C)/7000(O.C)/6800(O.C)/6600(O.C)/6400/5600 MT/s |
| - 2 x DDR5 DIMM sockets (up to 128GB, 64GB per DIMM) | |
| - Dual Channel Architecture | |
| - Supports ECC Un-buffered DIMM (non-ECC mode) | |
| - Supports non-ECC Un-buffered DIMM | |
| - Supports XMP memory profiles | |
| Onboard Graphics | Integrated Intel® HD Graphics: |
| - 1 x HDMI port (4096x2160@60Hz, HDMI 2.1, HDCP 2.3) | |
| - 1 x DisplayPort (3840x2160@144Hz, DisplayPort 2.1) | |
| Graphics specs vary by CPU | |
| Audio | Realtek® Audio CODEC |
| - High Definition Audio | |
| - 2/4/5.1/7.1-channel support | |
| - S/PDIF Out supported | |
| LAN | Realtek® 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless | Realtek® Wi-Fi 6 RTL8851BE |
| - Wi-Fi a/b/g/n/ac/ax (2.4GHz & 5GHz) | |
| - Bluetooth 5.3 | |
| - Supports 11ax 80MHz wireless standard | |
| Expansion Slots | CPU: |
| - 1 x PCIe x16 slot (PCIe 5.0 x16) | |
| Chipset: | |
| - 1 x PCIe x16 slot (PCIe 4.0 x4) | |
| PCIEX16 supports GPU or NVMe SSD only | |
| Storage Interface | CPU: |
| - 1 x M.2 (PCIe 5.0 x4/x2, 2280 type) | |
| Chipset: | |
| - 1 x M.2 (PCIe 4.0 x4/x2, 2280 type) | |
| - 4 x SATA 6Gb/s connectors | |
| - Supports RAID 0, 1, 5, 10 | |
| USB | Chipset: |
| - 1 x USB Type-C (USB 3.2 Gen1, internal header) | |
| - 5 x USB 3.2 Gen1 (3 rear, 2 internal) | |
| - 3 x USB 2.0 (rear) | |
| Chipset + Hub: | |
| - 4 x USB 2.0 (internal headers) | |
| Internal I/O | - 24-pin ATX power |
| - 8-pin CPU 12V power | |
| - 1 x CPU fan | |
| - 1 x CPU fan/pump | |
| - 1 x system fan | |
| - 1 x system fan/pump | |
| - 3 x ARGB Gen2 headers | |
| - 2 x M.2 slots | |
| - 4 x SATA ports | |
| - 1 x front panel header | |
| - 1 x audio header | |
| - 1 x S/PDIF Out | |
| - 1 x USB Type-C header (USB 3.2 Gen1) | |
| - 1 x USB 3.2 Gen1 header | |
| - 2 x USB 2.0 headers | |
| - 1 x TPM header | |
| - 1 x serial port header | |
| - 1 x Q-Flash Plus button | |
| - 1 x reset jumper | |
| - 1 x Clear CMOS jumper | |

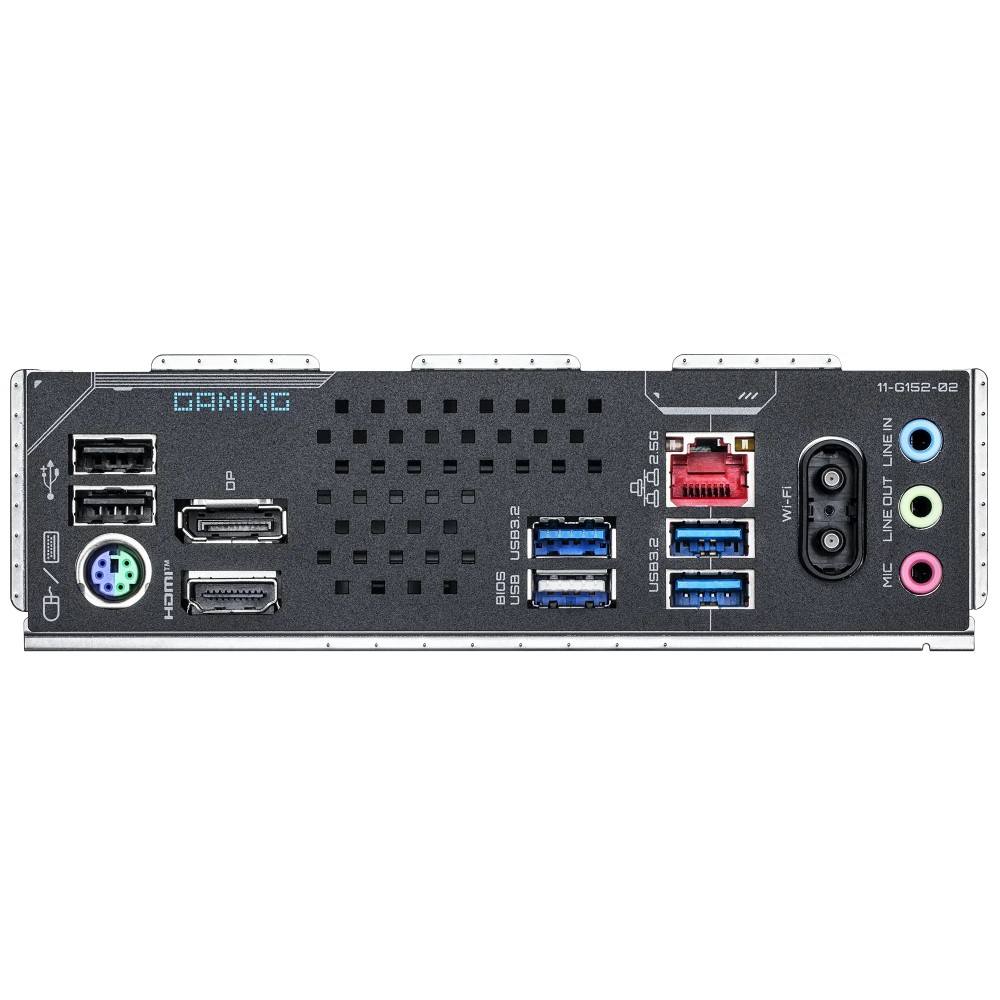

| Back Panel | - 1 x PS/2 keyboard/mouse port |
| - 1 x HDMI | |
| - 1 x DisplayPort | |
| - 3 x USB 3.2 Gen1 | |
| - 3 x USB 2.0 | |
| - 2 x antenna connectors | |
| - 1 x RJ-45 LAN | |
| - 3 x audio jacks | |
| I/O Controller | iTE® I/O Controller Chip |
| Hardware Monitoring | - Voltage, temperature, fan speed detection |
| - Water cooling flow rate detection | |
| - Fan fail warning | |
| - Fan/pump speed control (depends on hardware) | |
| BIOS | - 256 Mbit flash |
| - AMI UEFI BIOS | |
| - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | - GIGABYTE Control Center (GCC) |
| - Q-Flash & Q-Flash Plus | |
| - Smart Backup | |
| Bundled Software | - Norton® Internet Security (OEM) |
| - LAN bandwidth management software | |
| Operating System | - Windows 11 64-bit |
| - Windows 10 64-bit | |
| Intel® NPU driver supports Windows 11 only | |
| Form Factor | Micro ATX (24.4 cm x 22.5 cm) |
| Product Name | Gigabyte B860M Gaming WiFi6 LGA 1851 M-ATX Motherboard Intel B860 Chipset 2x DIMM DDR5 Slots Up to 128GB Max Memory 1x PCIe 5.0 x16 2x M.2 Slots WiFi 6 & BT 5.3 |
| Brand | Gigabyte |
| Category | Motherboard / Chipset |
| SKU | B860M WiFi6 DDR5 |
| Motherboard Platform | Intel Motherboard |
| RAM Type | DDR5 |
| Warranty | 1 Year Warranty |
| Payment Methods | Cash on Delivery (COD), Direct Bank Transfer, EasyPaisa, JazzCash |
