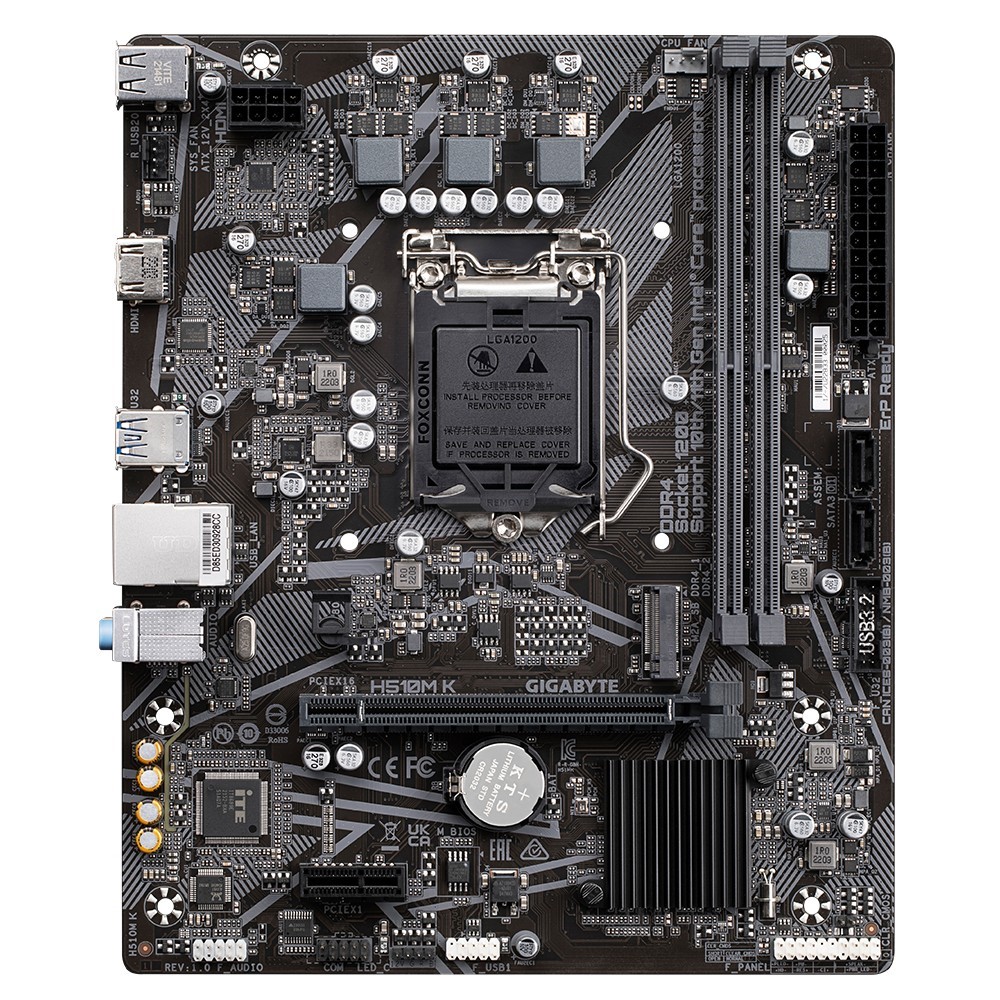

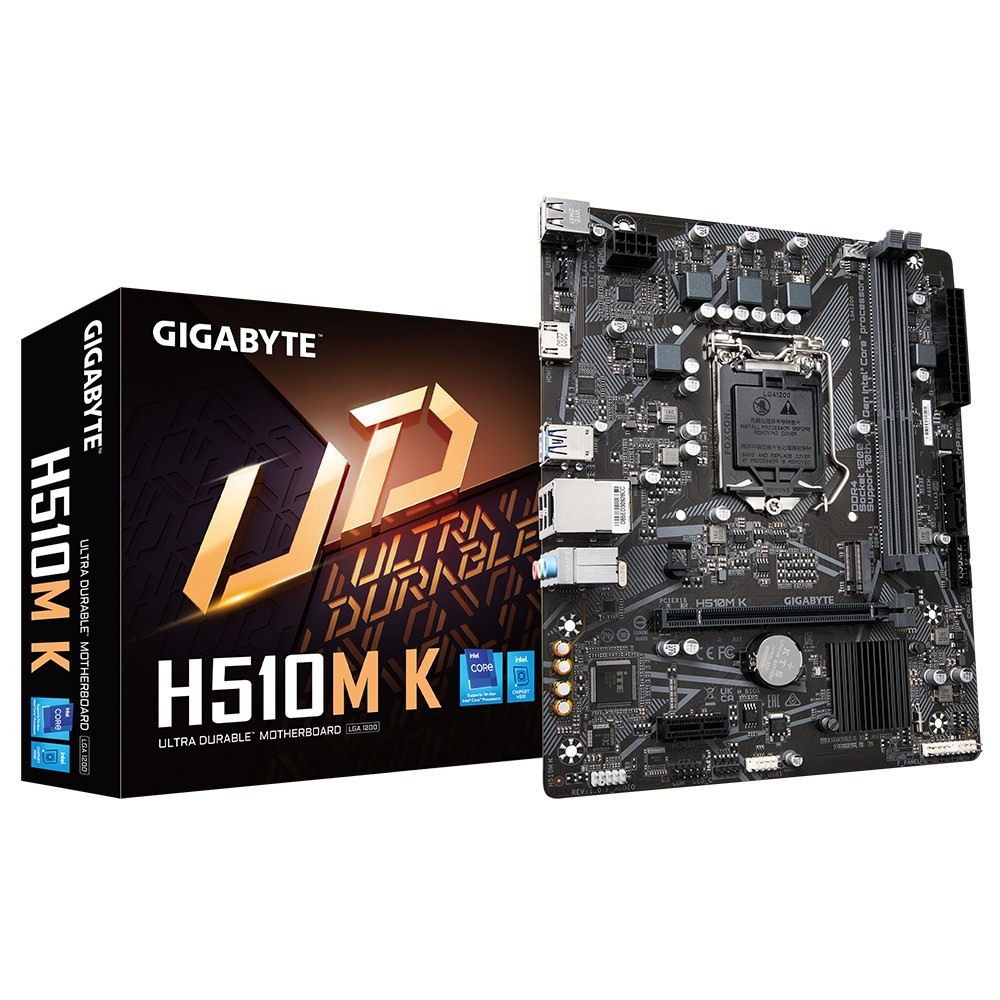

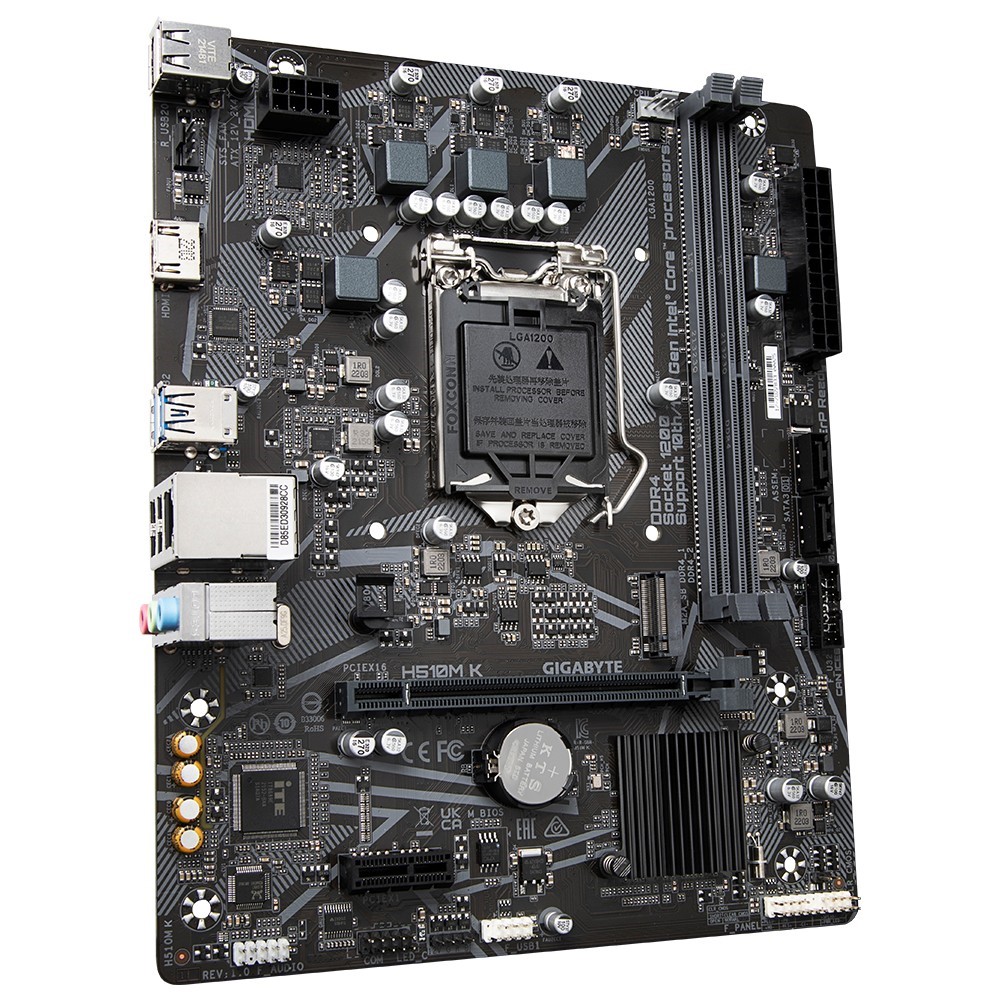

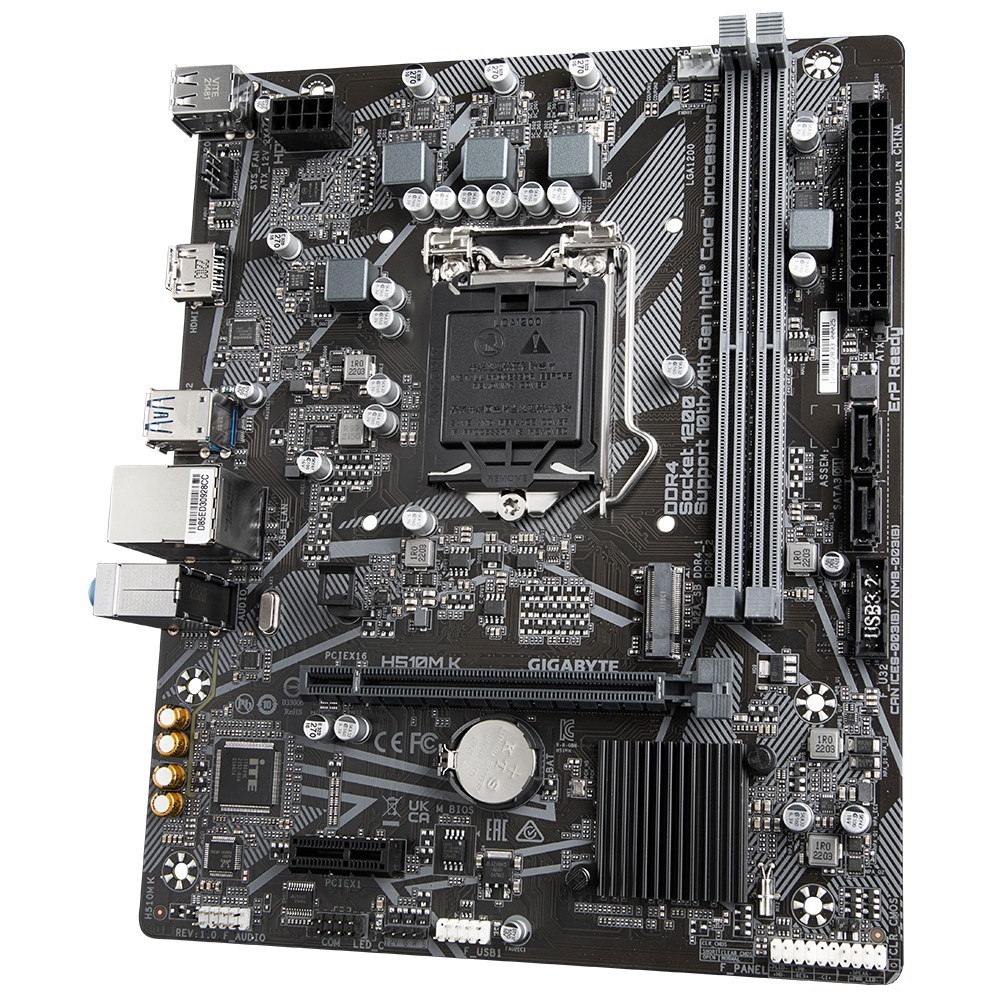

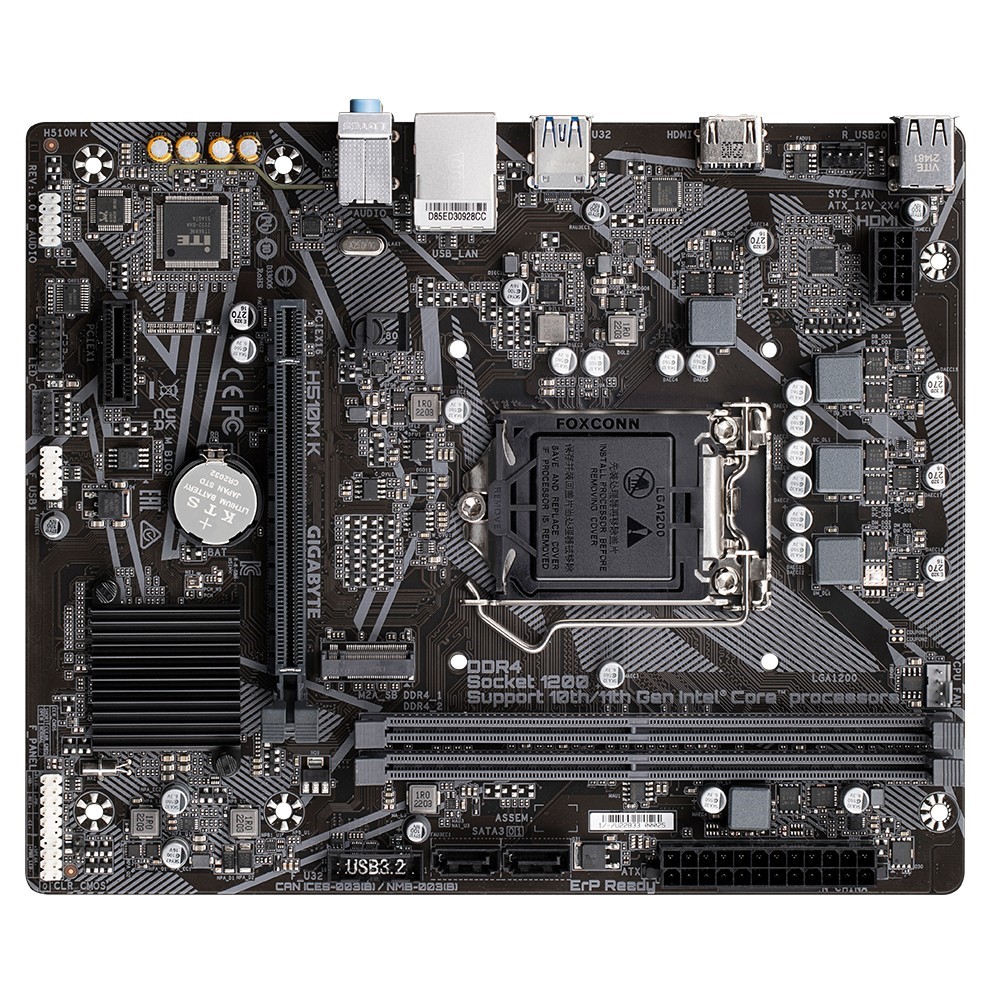

Gigabyte H510M K Intel LGA1200 DDR4 MicroATX Motherboard
In stock
Rs 23,299
Key Highlights
- Supports 11th/10th Gen Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 8-Channel HD Audio with High Quality Audio Capacitors
- NVMe PCIe Gen3 x4 2280 M.2 Connector
- GbE LAN with Bandwidth Management
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
- Brand
- Gigabyte
- Category
- Motherboard / Chipset
- SKU
- H510M K
- Warranty
- 1 Year Warranty
- Delivery to all major cities across Pakistan (2-5 business days)
- Or pick it up at Techno City Mall, Karachi
Gigabyte H510M K Intel LGA1200 DDR4 MicroATX Motherboard Price in Pakistan
| CPU | Socket: LGA1200 package |
| Supported Processors: | |
| - 11th Gen Intel® Core™ i9 / i7 / i5 | |
| - 10th Gen Intel® Core™ i9 / i7 / i5 / i3 / Pentium® / Celeron® | |
| L3 Cache: Varies with CPU | |
| (Refer to CPU Support List) | |
| Chipset | Intel® H510 Express Chipset |
| Memory | - 11th Gen Core™ i9/i7/i5: DDR4 3200/3000/2933/2666/2400/2133 MT/s |
| - 10th Gen Core™ i9/i7: DDR4 2933/2666/2400/2133 MT/s | |
| - 10th Gen Core™ i5/i3/Pentium®/Celeron®: DDR4 2666/2400/2133 MT/s | |
| - 2 x DDR4 DIMM sockets (max 64 GB; 32 GB per DIMM) | |
| - Dual Channel Memory Architecture | |
| - Support for ECC & non-ECC Un-buffered DIMMs (ECC operates in non-ECC mode) | |
| - Support for XMP memory modules | |
| (Refer to Memory Support List) | |
| Onboard Graphics | Integrated Intel® HD Graphics |
| 1 x HDMI port (4096x2160@30Hz) | |
| Supports HDMI 1.4, HDCP 2.3 | |
| (Graphics vary by CPU) | |
| Audio | Realtek® Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel configuration | |
| Configurable via audio software | |
| LAN | Realtek® GbE LAN (1 Gbps / 100 Mbps) |
| Expansion Slots | CPU: 1 x PCIe x16 slot (PCIe 4.0 x16 with 11th Gen CPUs) |
| Chipset: 1 x PCIe x1 slot (PCIe 3.0 x1) | |
| Storage Interface | Chipset: |
| 1 x M.2 (Socket 3, M key, 2280, PCIe 3.0 x4/x2 SSD) | |
| 2 x SATA 6Gb/s connectors | |
| USB | Chipset: |
| 4 x USB 3.2 Gen 1 (2 rear, 2 internal header) | |
| 6 x USB 2.0/1.1 (4 rear, 2 internal header) | |
| Internal I/O Connectors | - 1 x 24-pin ATX power |
| - 1 x 8-pin ATX 12V power | |
| - 1 x CPU fan header | |
| - 1 x System fan header | |
| - 1 x RGB LED strip header | |
| - 1 x M.2 Socket 3 | |
| - 2 x SATA 6Gb/s connectors | |
| - 1 x Front panel header | |
| - 1 x Front panel audio header | |
| - 1 x USB 3.2 Gen 1 header | |
| - 1 x USB 2.0/1.1 header | |
| - 1 x Serial port header | |
| - 1 x Clear CMOS jumper | |

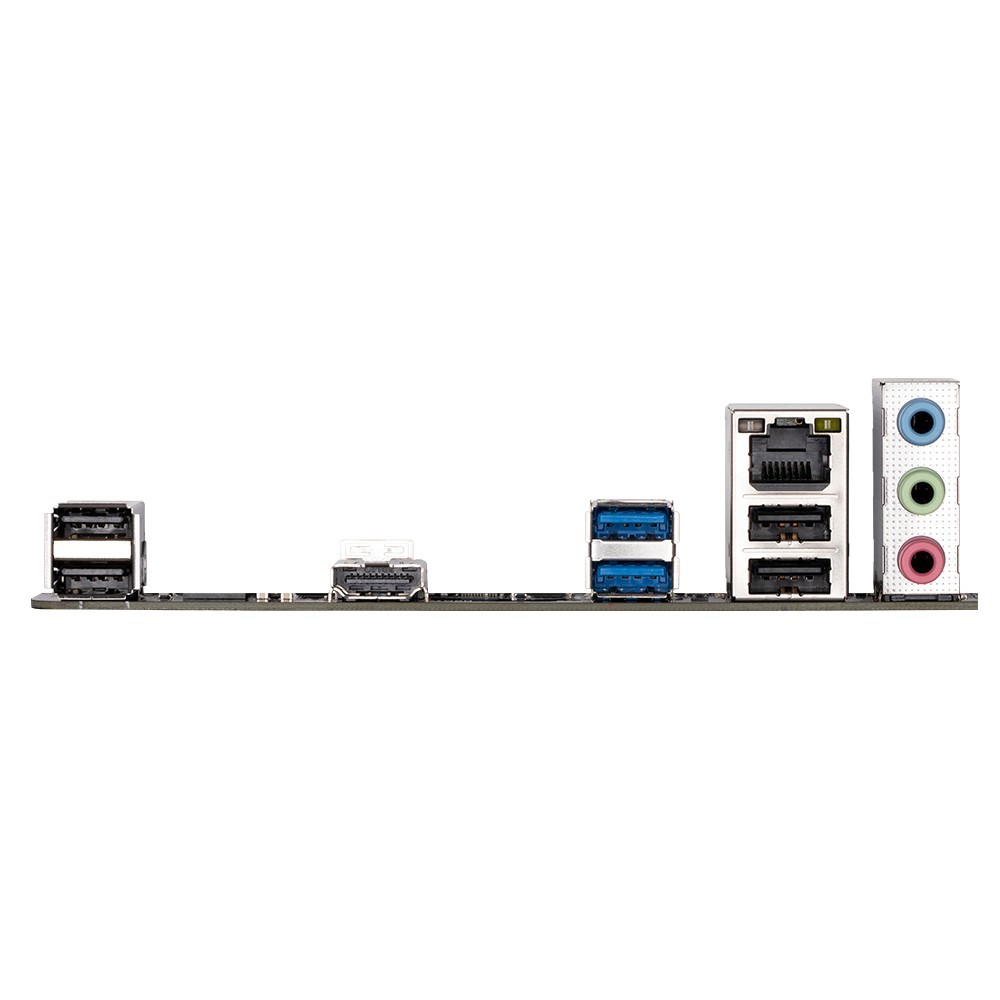

| Back Panel Connectors | - 1 x HDMI port |
| - 2 x USB 3.2 Gen 1 | |
| - 4 x USB 2.0/1.1 | |
| - 1 x RJ-45 LAN port | |
| - 3 x Audio jacks | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | - Voltage, Temperature, Fan Speed detection |
| - Fan fail warning | |
| - Fan speed control (depends on cooler) | |
| BIOS | 128 Mbit flash |
| AMI UEFI BIOS | |
| Support for PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | - APP Center (varies by model) |
| - @BIOS | |
| - Ambient LED | |
| - EasyTune | |
| - ON/OFF Charge | |
| - Smart Backup | |
| - System Information Viewer | |
| - Q-Flash | |
| - Xpress Install | |
| Bundled Software | - Norton® Internet Security (OEM) |
| - LAN Bandwidth Management Software | |
| Operating System | Windows 11 64-bit / Windows 10 64-bit |
| Form Factor | Micro ATX; 22.6cm x 18.5cm |
| Product Name | Gigabyte H510M K Intel LGA1200 DDR4 MicroATX Motherboard |
| Brand | Gigabyte |
| Category | Motherboard / Chipset |
| SKU | H510M K |
| Motherboard Platform | Intel Motherboard |
| RAM Type | DDR5 |
| Warranty | 1 Year Warranty |
| Payment Methods | Cash on Delivery (COD), Direct Bank Transfer, EasyPaisa, JazzCash |
