MSI

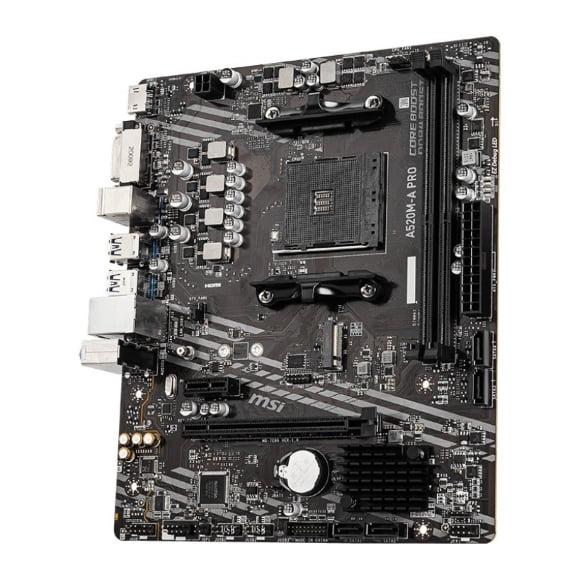

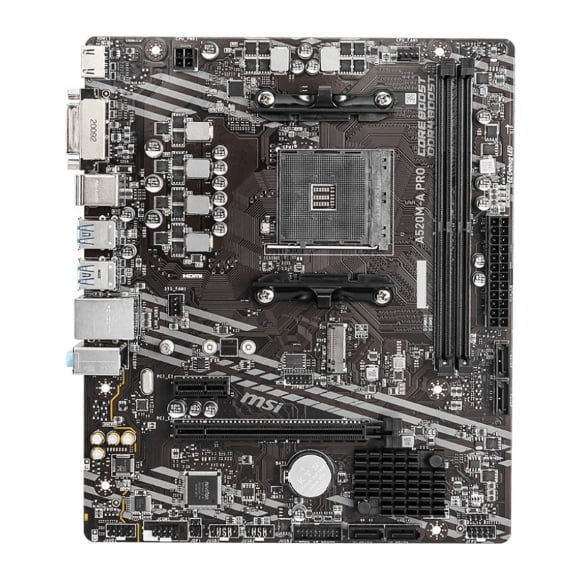

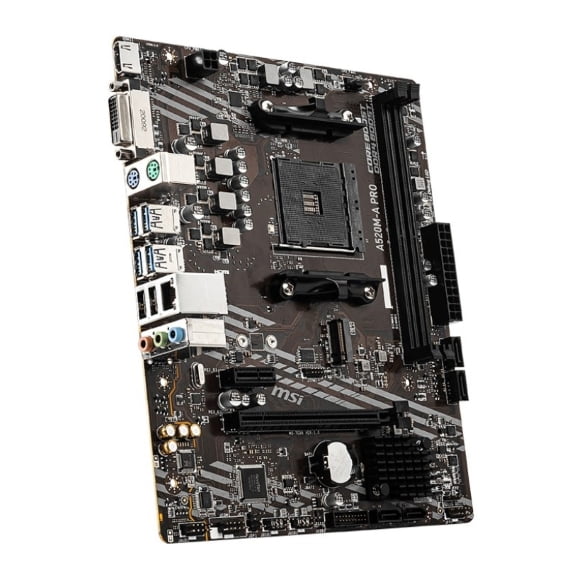

MSI A520M-A PRO AM4 AMD A520 SATA 6Gb/s USB 3.0 Micro ATX AMD Motherboard
In stock
Rs 20,499
Key Highlights
- AMD A520
- Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors
- Supports DDR4 4600+/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE
- Supports DDR4 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
- 1DPC 1R max speed 4600 MHz
- 1DPC 2R max speed 3866 MH
- Brand
- MSI
- Category
- Motherboard / Chipset
- SKU
- A520M-A PRO
- Warranty
- 2 Years Warranty
- Delivery to all major cities across Pakistan (2-5 business days)
- Or pick it up at Techno City Mall, Karachi
MSI A520M-A PRO AM4 AMD A520 SATA 6Gb/s USB 3.0 Micro ATX AMD Motherboard Price in Pakistan
| Brand | MSI |
|---|---|
| Model | A520M-A PRO |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors |
| Chipset | AMD A520 |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | Supports DDR4 4600+/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE Supports DDR4 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 * Actual support may vary by CPU. |
|---|---|
| PCI Express x16 | 1 x PCI Express x16 |
| PCI Express x1 | 1 x PCIe 3.0 x1 slot |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 * Supports SATA 6Gb/s Supports 2242/2260/2280 storage devices * The supported specification depends on installed processor. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic: 1 x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz12 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1 Maximum shared memory of 16GB 1 Available for the processor with integrated graphics. 2 Graphics specifications may vary depending on the CPU installed. |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8111H |
|---|---|
| Max LAN Speed | 1Gbps |

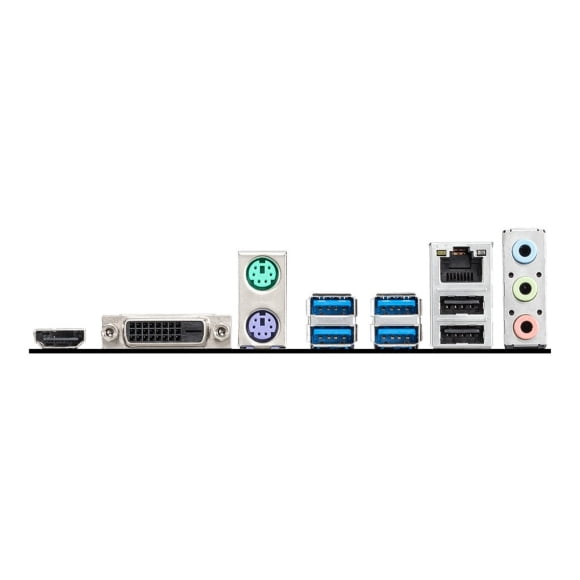

| Back I/O Ports | 6 x USB 3.1 Gen 1 Type-A |
|---|---|
| USB 3.0 | 6 x USB 3.0 |
| Onboard USB | 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | None RGB |
| Dimensions (W x L) | 9.3" x 7.9" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector |
| Windows 11 | Supported |
|---|
| Features | Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors Supports DDR4 Memory, up to 4600(OC) MHz Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs Core Boost: With premium layout and digital power design to support more cores and provide better performance DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability Audio Boost: Reward your ears with studio grade sound quality Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface |
|---|
| Product Name | MSI A520M-A PRO AM4 AMD A520 SATA 6Gb/s USB 3.0 Micro ATX AMD Motherboard |
| Brand | MSI |
| Category | Motherboard / Chipset |
| SKU | A520M-A PRO |
| Motherboard Platform | AMD Motherboard |
| RAM Type | DDR4 |
| Warranty | 2 Years Warranty |
| Payment Methods | Cash on Delivery (COD), Direct Bank Transfer, EasyPaisa, JazzCash |
