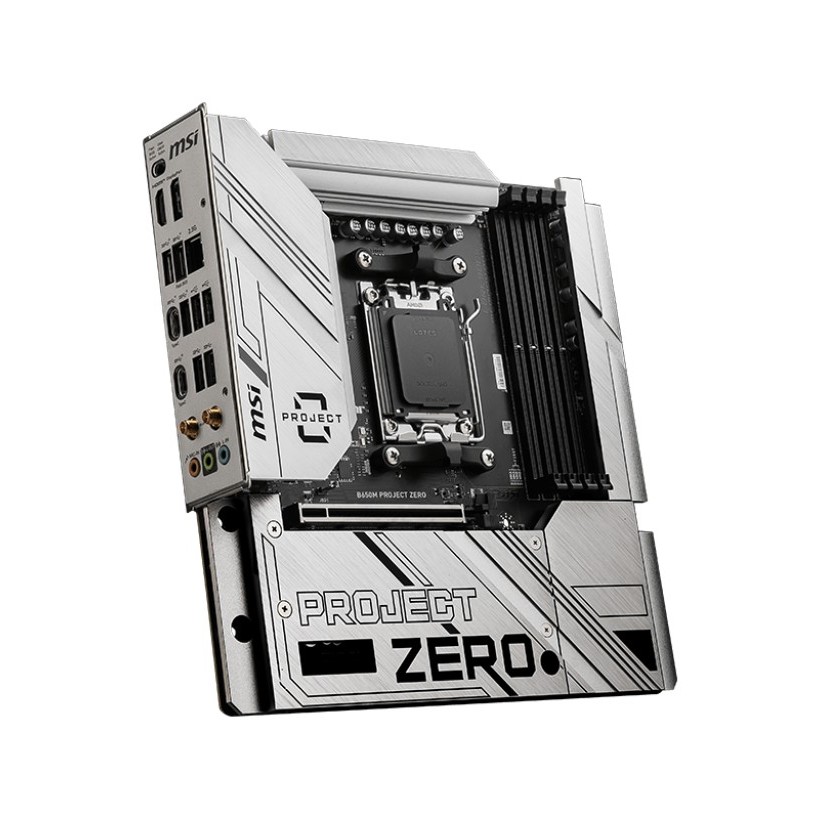

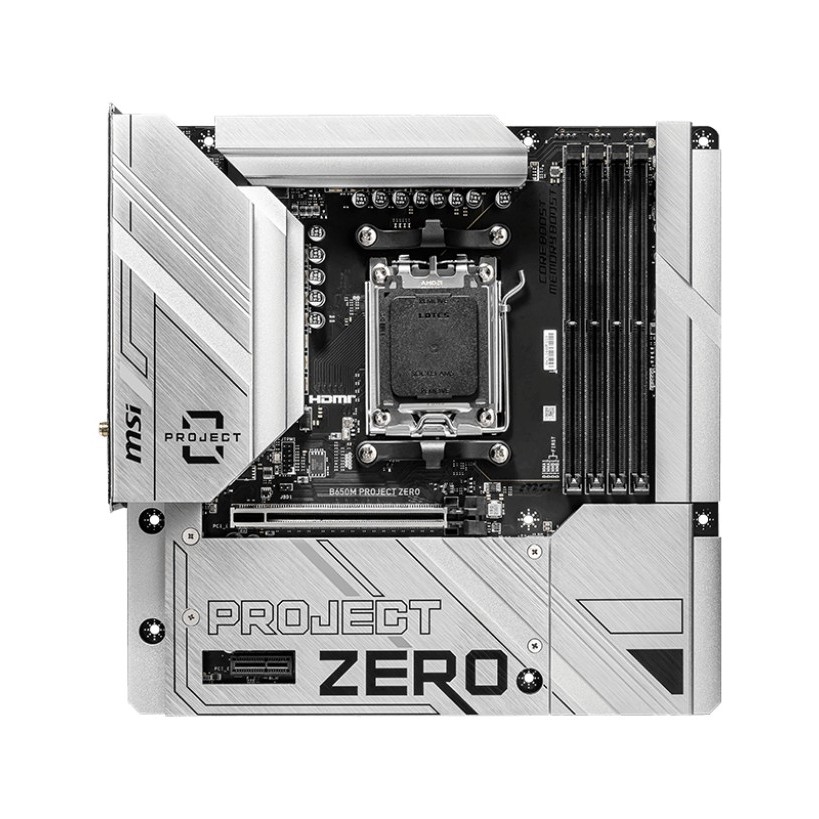

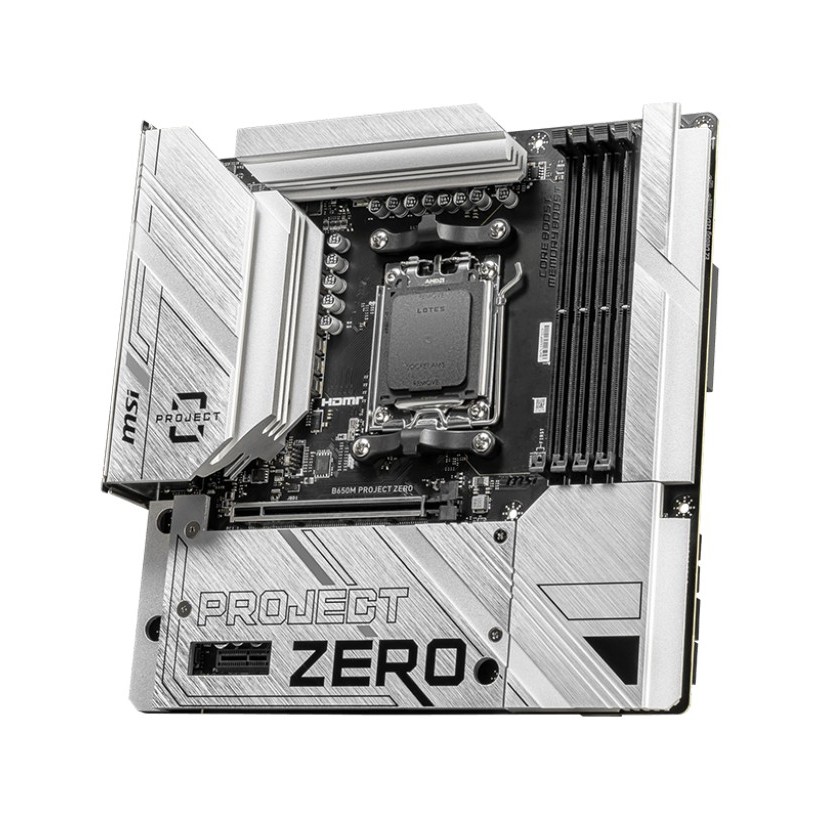

MSI B650M PROJECT ZERO AM5 AMD B650 Ryzen 7000 SATA DDR5 Wi-Fi 6E Bluetooth mATX Back Connect Design Motherboard
In stock
10% off
Rs 58,499
Rs 64,999
You save Rs 6,500 on the regular price.
Key Highlights
- Supports AMD Ryzen 7000 Series and Ryzen 9000 Series processors
- Bios update MAY required when used with 9000 Series processors

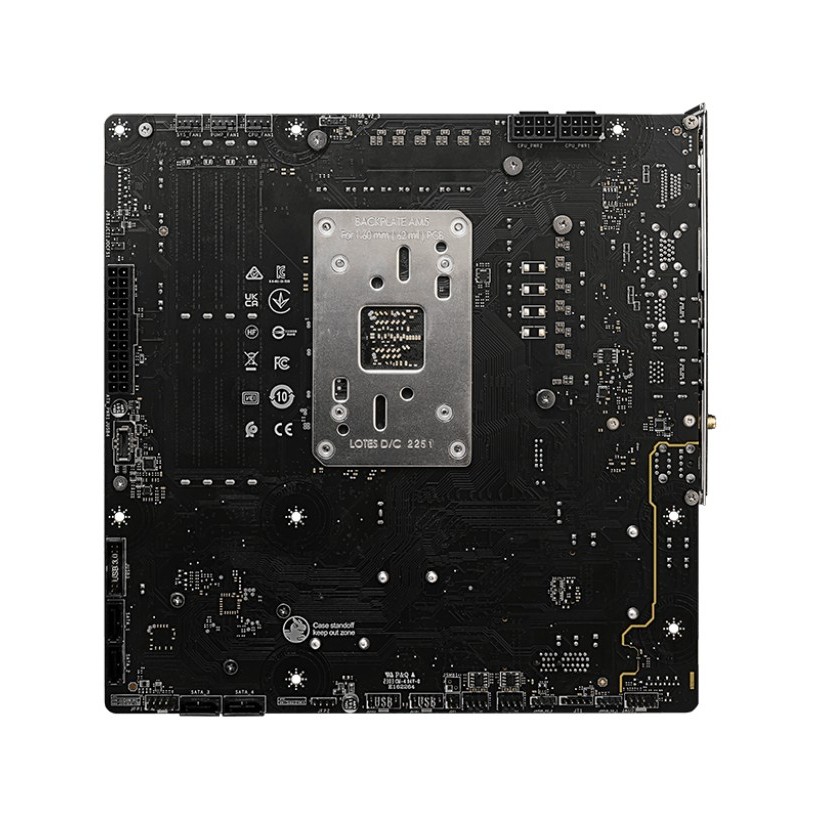

- Back-Connect Design: Move the connectors to the back to provide a cleaner and neater front view and significantly reduces the difficulty of cable management.
- Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
- Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
- M.2 Shield FROZR: M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Wi-Fi 6E:The latest wireless solution supports 6GHz spectrum, MU-MIMO
- and BSS color technology, delivering speeds up to 2400Mbps.
- Brand
- Asus
- Category
- Motherboard / Chipset
- SKU
- SKU-126004
- Warranty
- 1 Year Warranty
- Delivery to all major cities across Pakistan (2-5 business days)
- Or pick it up at Techno City Mall, Karachi
MSI B650M PROJECT ZERO AM5 AMD B650 Ryzen 7000 SATA DDR5 Wi-Fi 6E Bluetooth mATX Back Connect Design Motherboard Price in Pakistan
| Best Seller Ranking | #57 in AMD Motherboards |
|---|
| Brand | MSI |
|---|---|
| Model | B650M PROJECT ZERO |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD B650 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: - 1DPC 1R Max speed up to 7600+ MHz - 1DPC 2R Max speed up to 6400+ MHz - 2DPC 1R Max speed up to 6400+ MHz - 2DPC 2R Max speed up to 5400+ MHz |
| Maximum Memory Supported | 128GB |
| PCI Express 4.0 x16 | 1x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
|---|---|
| PCI Express x1 | 1x PCI-E x1 slot PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| SATA RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices * SATA_A1_A2 do not support RAID function. |
| Audio Chipset | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8125BG 2.5Gbps LAN |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. |
| Bluetooth | Supports Bluetooth 5.3** ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |

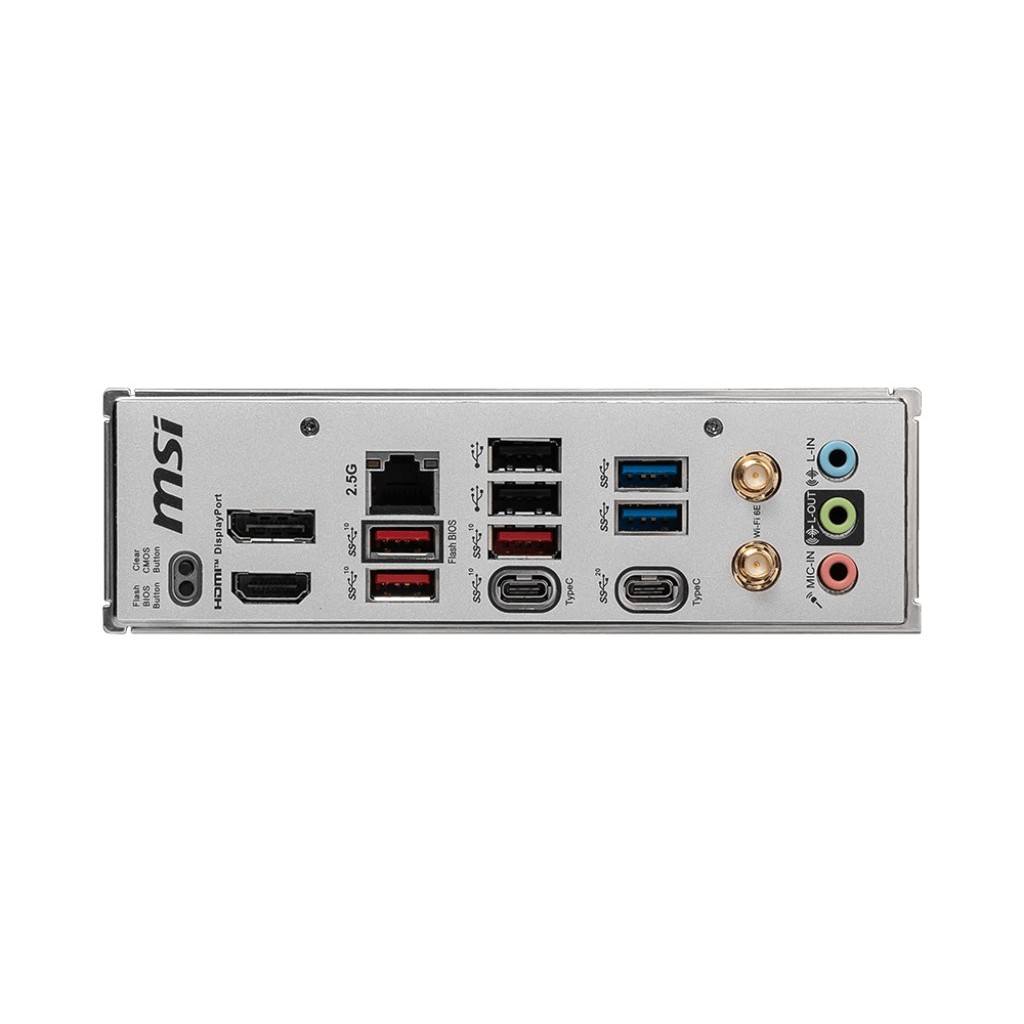

| Back I/O Ports | 1 x DisplayPort 1 x HDMI 1 x 2.5G LAN 2 x USB 2.0 2 x USB 3.2 Gen 1 5Gbps (Type-A) 3 x USB 3.2 Gen 2 10Gbps (Type-A) 1 x USB 3.2 Gen 2 10Gbps (Type-C) 1 x USB 3.2 Gen 2x2 20Gbps (Type-C) 2 x Wi-Fi / Bluetooth Antenna Bracket 3 x Audio connectors 1 x Flash BIOS Button 1 x Clear CMOS Button |
|---|
| Onboard USB | 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
|---|---|
| Other Connectors | 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) |
| Form Factor | Micro ATX (Back Connect) |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) |
| Windows 11 | Supported |
|---|
| Features | Supports AMD Ryzen™ 7000 Series Desktop Processors Supports DDR5 Memory, up to 7600+(OC) MHz Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1 Audio Boost: Reward your ears with studio grade sound |
|---|
| Product Name | MSI B650M PROJECT ZERO AM5 AMD B650 Ryzen 7000 SATA DDR5 Wi-Fi 6E Bluetooth mATX Back Connect Design Motherboard |
| Brand | Asus |
| Category | Motherboard / Chipset |
| SKU | SKU-126004 |
| Motherboard Platform | AMD Motherboard |
| RAM Type | DDR5 |
| Warranty | 1 Year Warranty |
| Payment Methods | Cash on Delivery (COD), Direct Bank Transfer, EasyPaisa, JazzCash |
