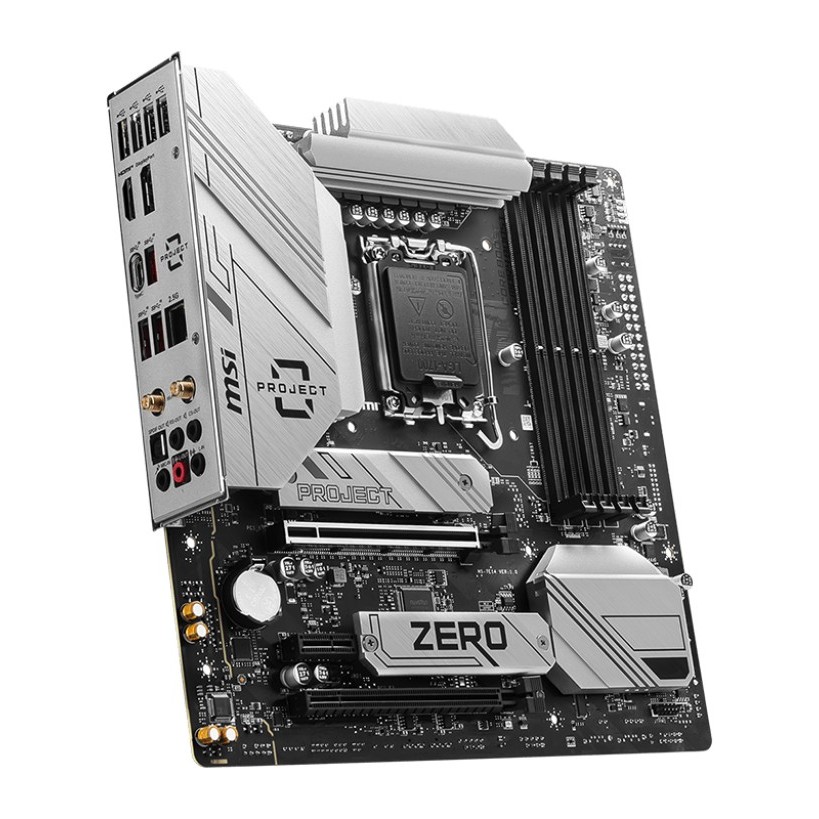

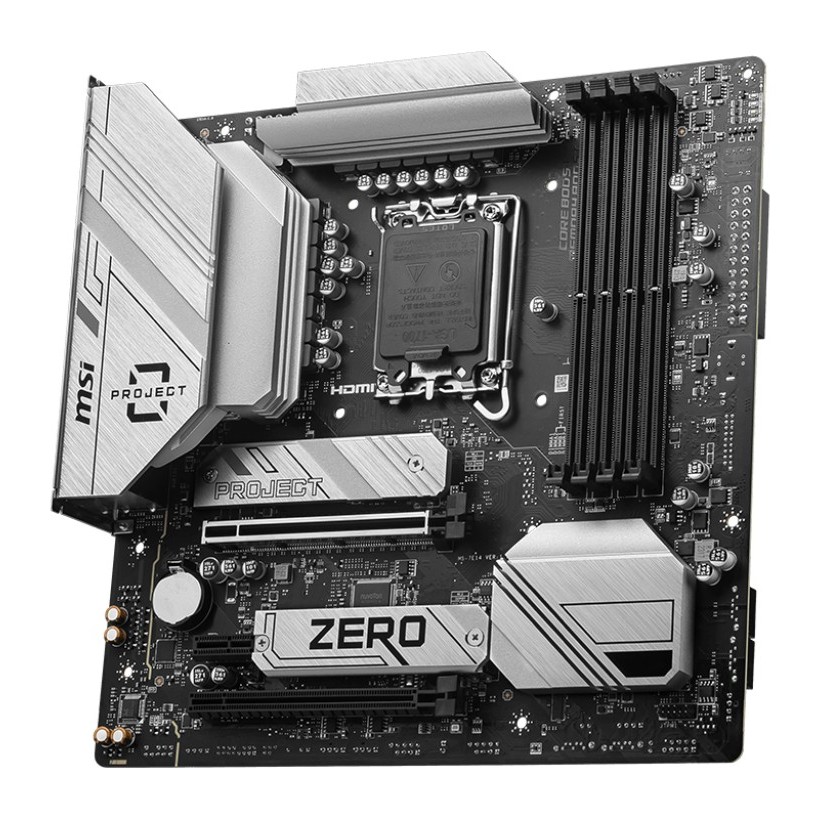

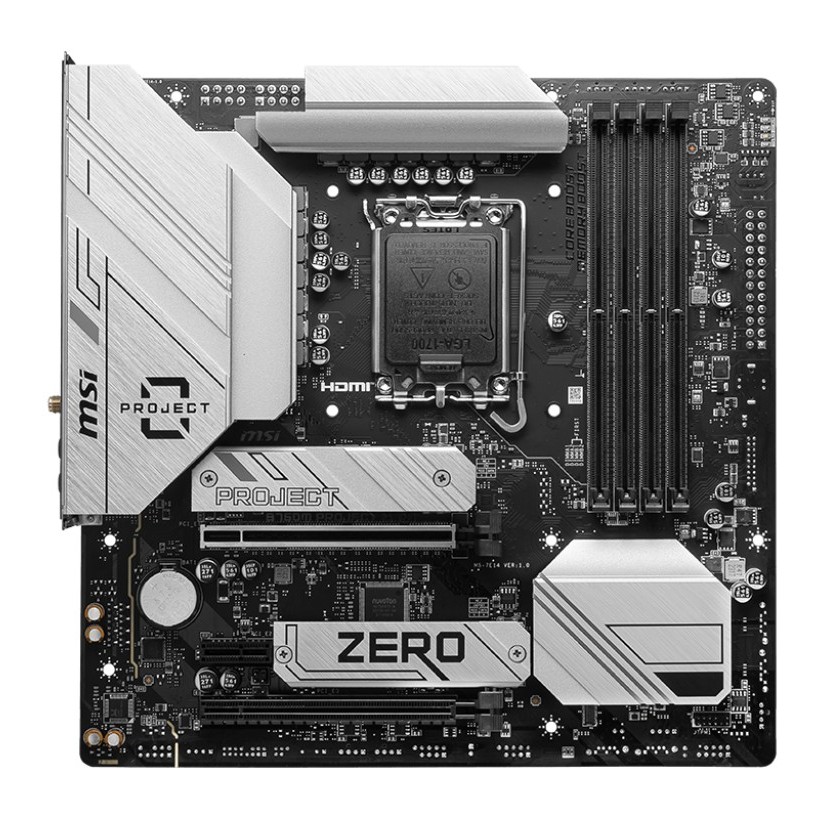

MSI B760M PROJECT ZERO Wi-Fi 6E LGA 1700 LGA1700 DDR5 Back Connect Design mATX Motherboards
In stock
15% off
Rs 54,999
Rs 64,999
You save Rs 10,000 on the regular price.
Key Highlights
- Back-Connect Design:Move the connectors to the back to provide a cleaner and neater front view and significantly reduces the difficulty of cable management.
- Lightning Gen 5:The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
- maximum transfer speed.
- Latest DDR5 Memory:A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
- Wi-Fi 6E:The latest wireless solution supports 6GHz spectrum, MU-MIMO
- and BSS color technology, delivering speeds up to 2400Mbps.
- 2.5G Network Solution:Featuring premium 2.5G LAN to deliver better network
- experience.
- Lightning USB 20G:Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
- M.2 Shield FROZR:M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster.
- 6 Layer PCB with 2oz Thickened Copper:An Enhanced PCB design provides higher performance and longlasting system stability without any compromise.
- Core Boost.
- Brand
- Asus
- Category
- Motherboard / Chipset
- SKU
- SKU-125995
- Warranty
- 2 Years Warranty
- Delivery to all major cities across Pakistan (2-5 business days)
- Or pick it up at Techno City Mall, Karachi
MSI MPG X870E CARBON AM5 ATX Gaming Motherboard Price in Pakistan
| Brand | MSI |
|---|---|
| Model | B760M PROJECT ZERO |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors |
| Chipset | Intel B760 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| Memory Feature | Max. overclocking frequency: - 1DPC 1R Max speed up to 7800+ MHz - 1DPC 2R Max speed up to 6600+ MHz - 2DPC 1R Max speed up to 6400+ MHz - 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile |
| PCI Express 5.0 x16 | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
|---|---|
| PCI Express x4 | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| PCI Express x1 | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| SATA RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1-Channel High Performance Audio Supports S/PDIF output |
| LAN Chipset | Realtek 2.5Gbps LAN |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Bluetooth | Supports Bluetooth 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |

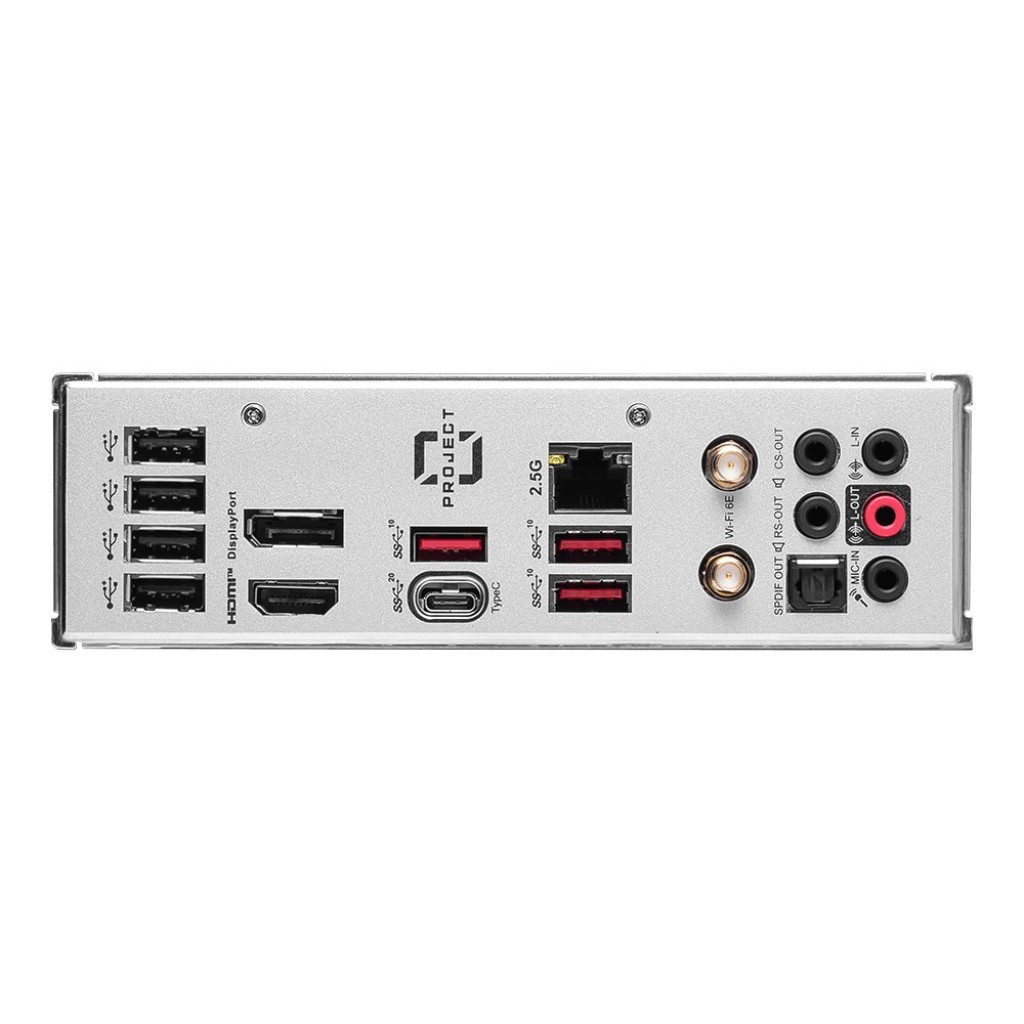

| Back I/O Ports | 4 x USB 2.0 1 x DisplayPort 1.4 3 x USB 3.2 Gen 2 10Gbps Type-A 1 x 2.5G LAN Port 2 x Wi-Fi / Bluetooth Antenna 5 x HD Audio Connectors 1 x HDMI 2.1 Port 1 x USB 3.2 Gen 2x2 20Gbps Type-C 1 x Optical S/PDIF OUT |
|---|
| Onboard USB | 4 x USB 2.0 2 x USB 3.2 Gen1 Type A 1 x USB 3.2 Gen2 Type C |
|---|---|
| Other Connectors | 1 x CPU Fan 1 x Pump Fan 4 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x TBT connector (JTBT, supports RTD3) 1 x Tuning Controller connector (JDASH) 2 x Addressable V2 RGB LED connector (JARGB_V2) 2 x RGB LED connector (JRGB) 1 x TPM pin header (Support TPM 2.0) |
| Windows 11 | Support for Windows 11 64-bit, Windows 10 64-bit |
|---|
| Form Factor | Micro ATX (Back Connect) |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x Power Connector (ATX_PWR) 2 x Power Connector (CPU_PWR) |
| Features | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket Supports DDR5 Memory, up to 7800+(OC) MHz Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2 Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works Audio Boost: Reward your ears with studio grade sound High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material |
|---|
| Package Contents | Quick Installation Guide SATA Cable EZ M.2 Clip Package M.2 Screw / Standoff Set Cable Sticker Wi-Fi Antenna |
|---|
| Product Name | MSI B760M PROJECT ZERO Wi-Fi 6E LGA 1700 LGA1700 DDR5 Back Connect Design mATX Motherboards |
| Brand | Asus |
| Category | Motherboard / Chipset |
| SKU | SKU-125995 |
| Warranty | 2 Years Warranty |
| Payment Methods | Cash on Delivery (COD), Direct Bank Transfer, EasyPaisa, JazzCash |
