MSI

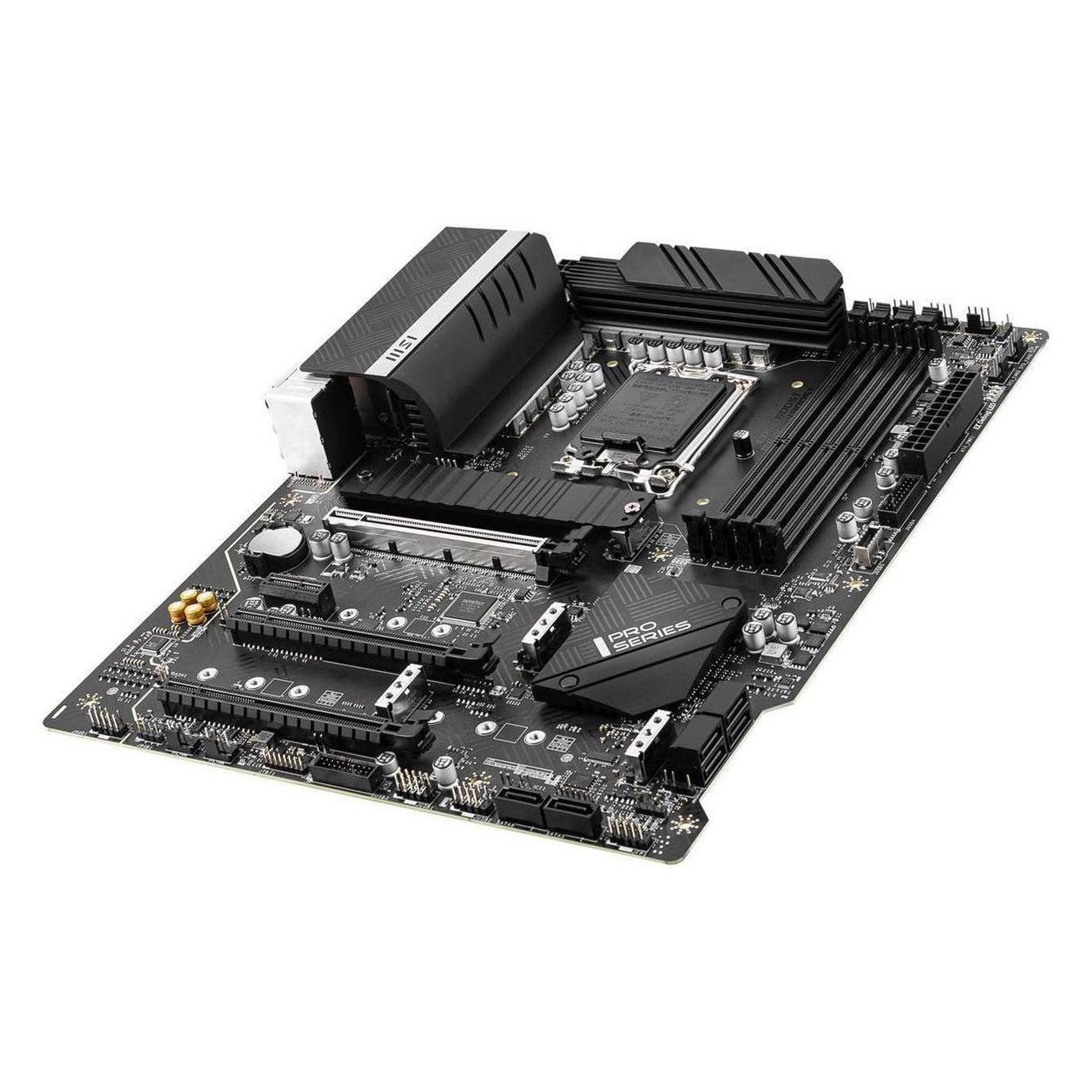

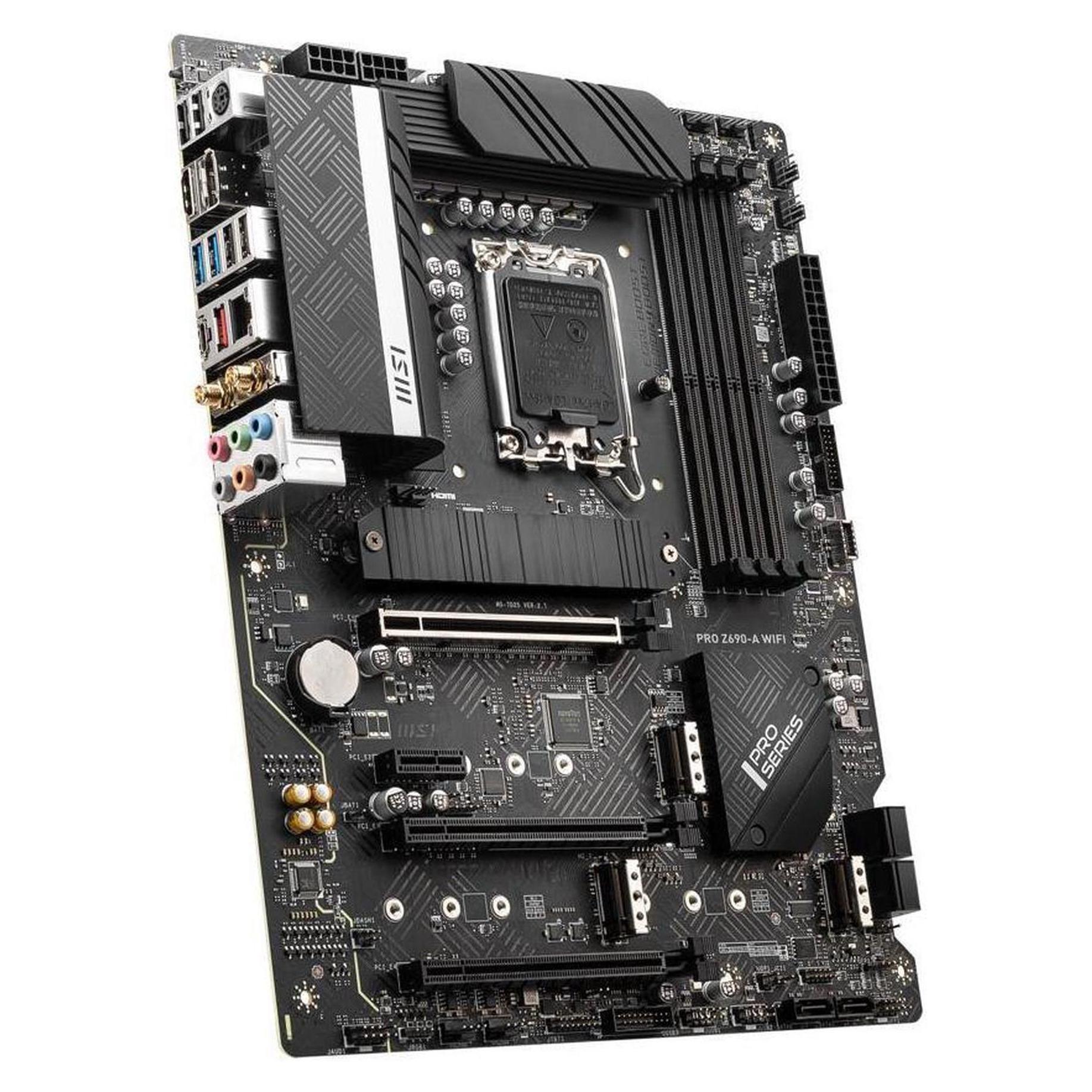

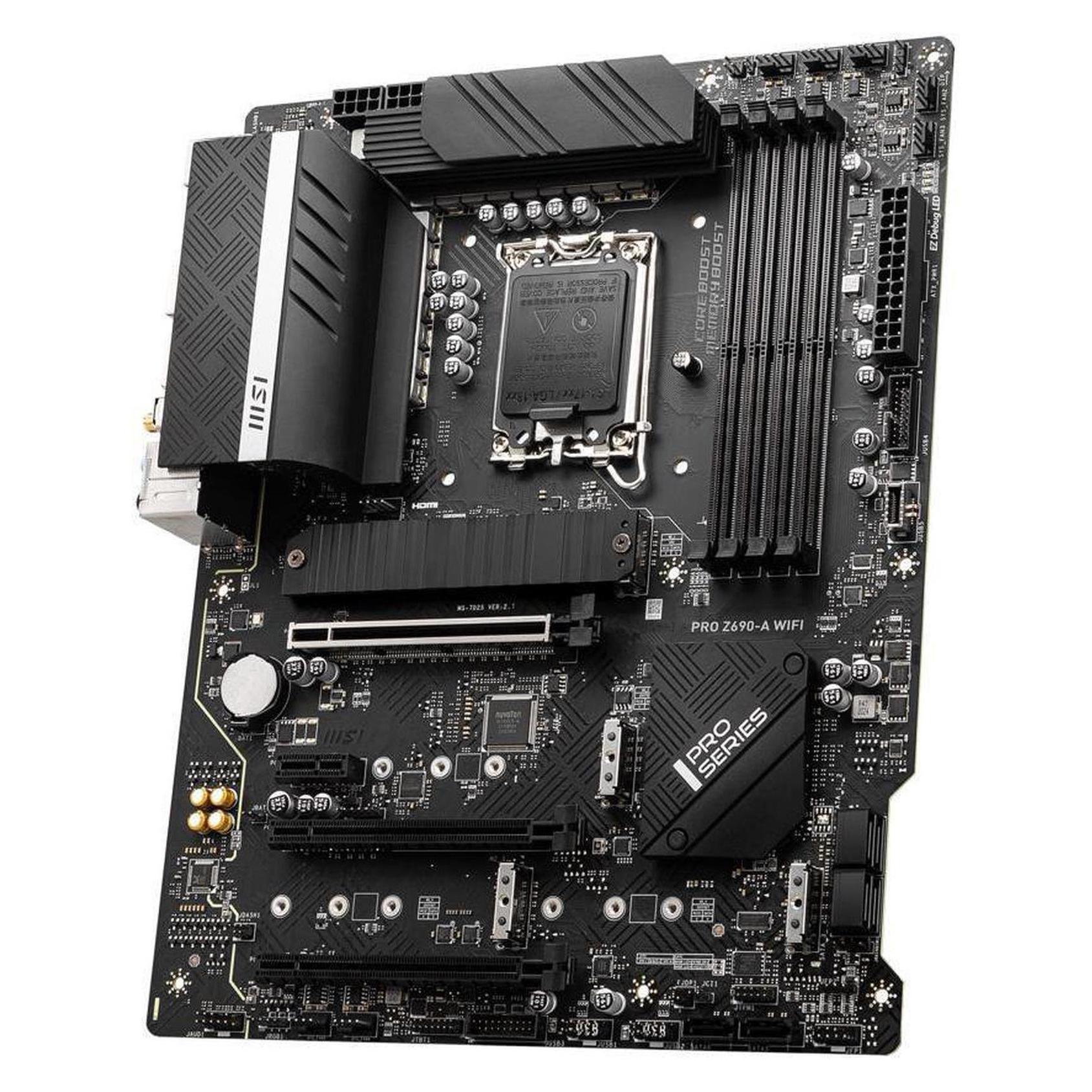

MSI PRO Z690-A WIFI DDR5 LGA 1700 ATX Intel Motherboard (Black Box) Open Box
In stock
11% off
Rs 41,990
Rs 47,000
You save Rs 5,010 on the regular price.
Key Highlights
- (OPEN BOX)
- BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information.
- Supports Intel Core 14th, 13th and 12th Gen Processors, Intel Pentium Gold, Celeron Processor and Intel Processor 300(T) for LGA 1700 socket
- Supports DDR5 Memory, up to 6400+(OC) MHz
- Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- Audio Boost: Reward your ears with studio grade sound quality
- High Quality PCB: 6-layer PCB
- Brand
- MSI
- Category
- Motherboard / Chipset
- SKU
- Z690-A WIFI DDR5
- Warranty
- 3 Months Warranty
- Delivery to all major cities across Pakistan (2-5 business days)
- Or pick it up at Techno City Mall, Karachi
MSI PRO Z690-A WIFI DDR5 LGA 1700 ATX Intel Motherboard (Black Box) Price in Pakistan Specs
| Brand | MSI |
|---|---|
| Model | PRO Z690-A WIFI |
| CPU Socket Type | LGA 1700 * Dedicated LGA1700 mounting bracket is required. |
|---|---|
| CPU Type | Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors* May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. |
| Chipset | Intel Z690 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 1R 4800 (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 6400+ 1DPC 2R Max speed up to 5400+ 2DPC 1R Max speed up to 4000+ 2DPC 2R Max speed up to 4000+ |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 * Actual support may vary by CPU. |
|---|---|
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16 * Supports up to PCIe 3.0 x4 & 3.0 x1. |
| PCI Express x1 | 1 x PCI Express 3.0 x1 |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 4 x M.2 slots (Key M): M2_1 slot (from CPU): Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from Z690 chipset): Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_3 slot (from Z690 chipset): Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_4 slot (from Z690 chipset): Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
| Intel Optane Ready | Intel Optane Memory Ready for M.2 slots that are from Z690 Chipset |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I225-V |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel WIFI 6E 802.11 a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2 |

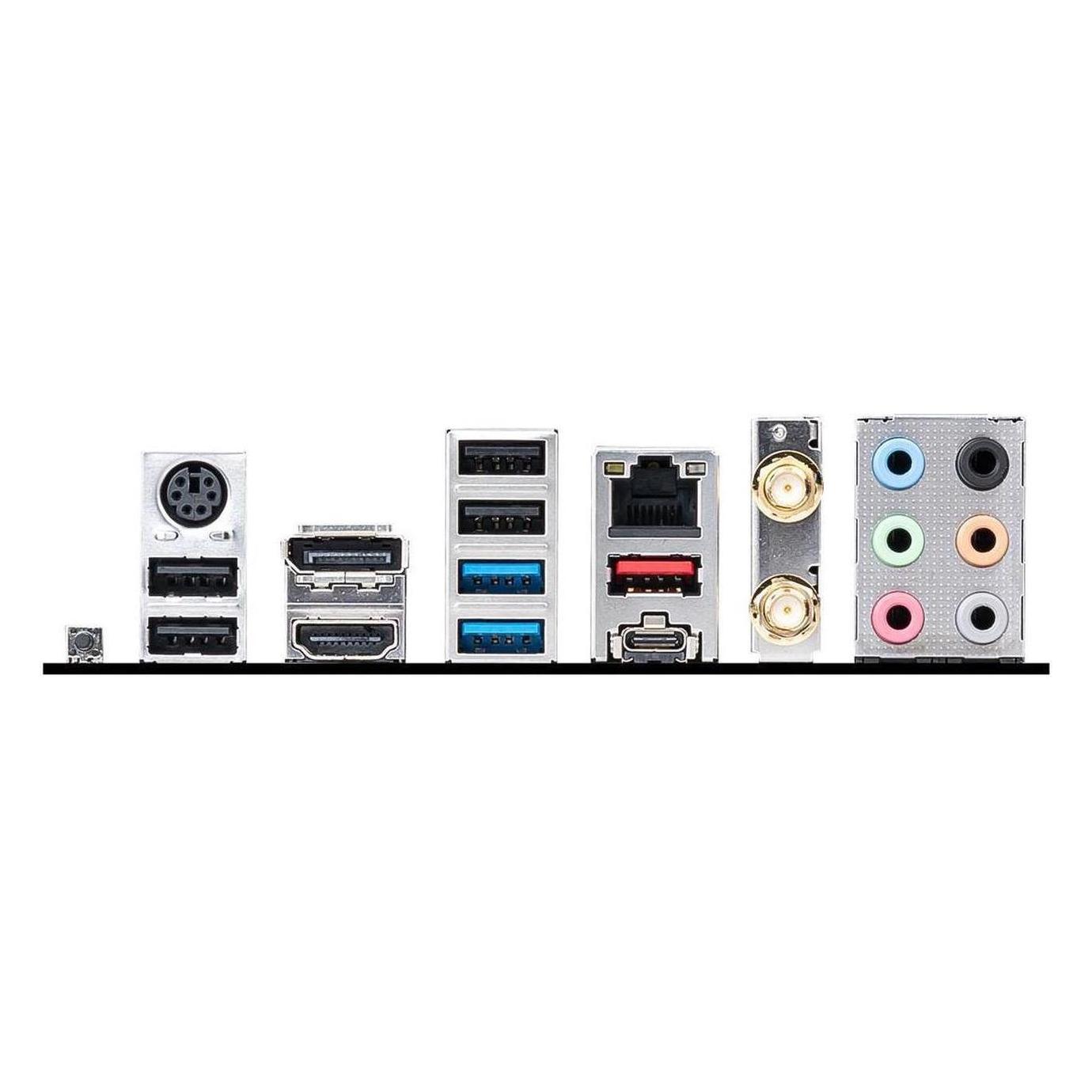

| Back I/O Ports | 1 x DisplayPort 1 x HDMI 1 x Flash BIOS Button 1 x LAN (RJ45) 2 x Antenna Bracket 6 x Audio Jacks 1 x PS/2 Keyboard/Mouse Combo 1 x USB 3.2 Gen 2x2 Type-C 1 x USB 3.2 Gen 2 Type-A 2 x USB 3.2 Gen 1 Type-A 4 x USB 2.0/1.1 |
|---|
| Onboard USB | 1 x USB 3.2 Gen 2 10Gbps Type-C port 2 x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 6 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x TPM module connector 1 x Tuning controller connector 1 x TBT connector (Supports RTD3) 1 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 4 x EZ Debug LED |
| Windows 11 | Supported |
|---|
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connector |
| Features | Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket Supports DDR5 Memory, up to 6400+(OC) MHz Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2 Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds Audio Boost: Reward your ears with studio grade sound quality High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire |
|---|
| Product Name | MSI PRO Z690-A WIFI DDR5 LGA 1700 ATX Intel Motherboard (Black Box) Open Box |
| Brand | MSI |
| Category | Motherboard / Chipset |
| SKU | Z690-A WIFI DDR5 |
| Motherboard Platform | Intel Motherboard |
| RAM Type | DDR5 |
| Warranty | 3 Months Warranty |
| Payment Methods | Cash on Delivery (COD), Direct Bank Transfer, EasyPaisa, JazzCash |
